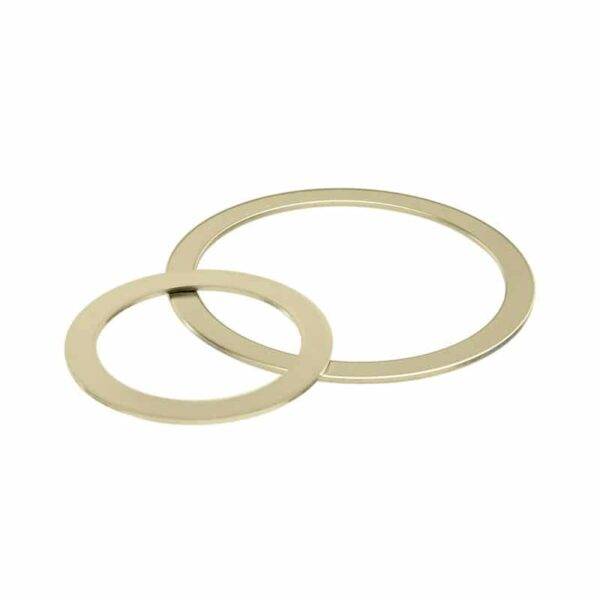

REPRESENTATIVE IMAGE

Attributes

Description Copper Gaskets (10)
Inner Diameter 2.505
Outer Diameter 3.24
Use with Flange CF450
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF450-GA-CO

Copper Gasket for 4.50 in. (DN 63) ConFlat Flange – 10 Pack

$57.00

266 in stock (can be backordered)

Part ID: 0604029


The basic seal for the CF flange system is an oxygen free electronic grade (OFE) and high thermal conductivity (OFHC) copper gasket that is compressed between the knife-edges of two CF flanges to create a seal capable of achieving ultra high vacuum pressures. These gaskets are precisely punched, de-burred, chemically treated and packaged to eliminate and prevent surface imperfections.

Features

  • Single-use seal

Specifications

  • Materials: OFE copper
  • Pressure range: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
