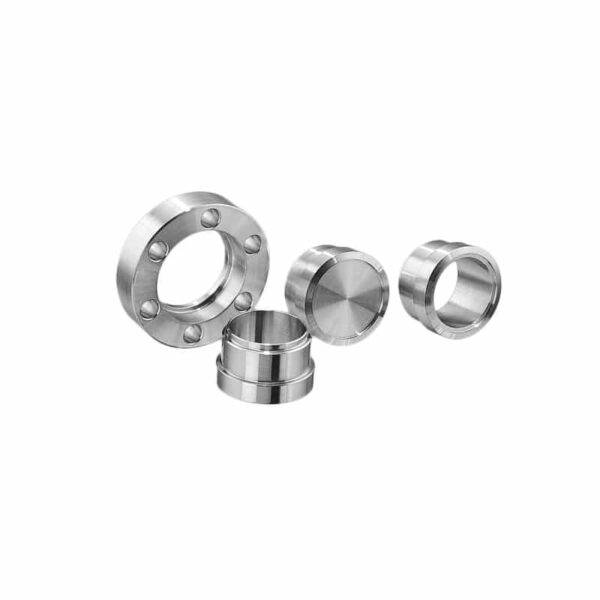

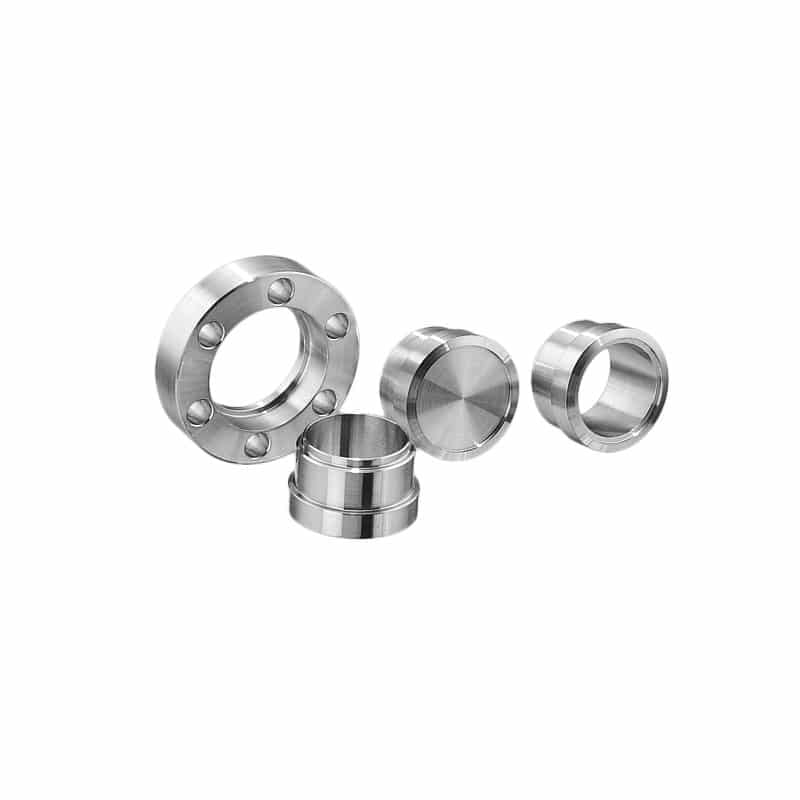

REPRESENTATIVE IMAGE

Attributes

A 0.63
Thrd 8-32
Flange Style Rotatable

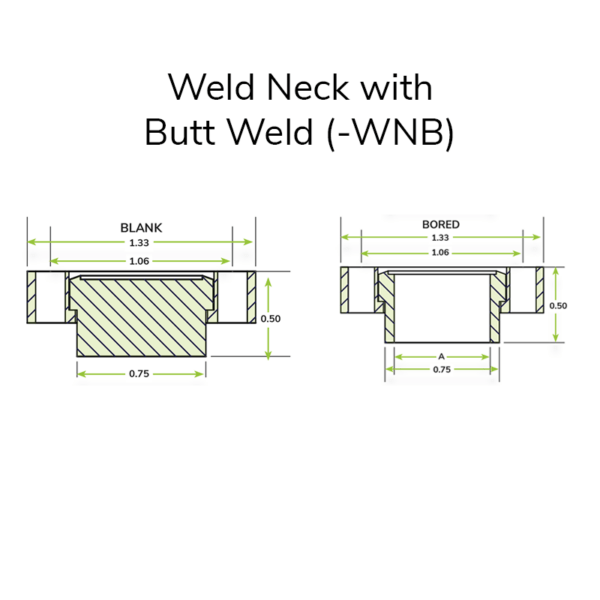

Weld Neck Type Weld Neck with Butt Weld
Bolt Hole Style Tapped
Bolt Hole Number 6
Bolt Hole Diameter 0.17
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF133RT-075-WNB

304L SS 1.33 in. (DN 16) Rotatable ConFlat Flange with Weld Neck Butt Weld, 3/4 in. Inner Diameter – Tapped Bolt Holes

$21.50

Need more than what you see in stock? Let us know and we can likely assemble in less than a day.

Available on backorder

Part ID: 5000035









1.33 inch outer diameter ConFlat rotatable flanges ideal for UHV applications.




 Features






  •  Designed to fit standard inch tubing O.D.’s
    •

  •  Self-aligning
    •

  •  Internal weld
    •

  •  Sexless flanges
    •

  •  Tapped and clearance (through-holes) bolt holes available
    •

  •  Blank flanges close unused ports or custom modify
    •

  • Interchangeable with other ConFlat style flanges
    •

  •  Adapters to other flange systems available
    •









 Specifications






  •  Flange Material: 304L Stainless Steel
    •

  •  Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  •  Temperature range: -200°C up to 450°C
    •

  •  Leak rating < 1×10-9 std. cc/s helium
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 0.63



                    Thrd 8-32



                    Flange Style Rotatable



                    Weld Neck Type Weld Neck with Butt Weld



                    Bolt Hole Style Tapped



                    Bolt Hole Number 6



                    Bolt Hole Diameter 0.17



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
