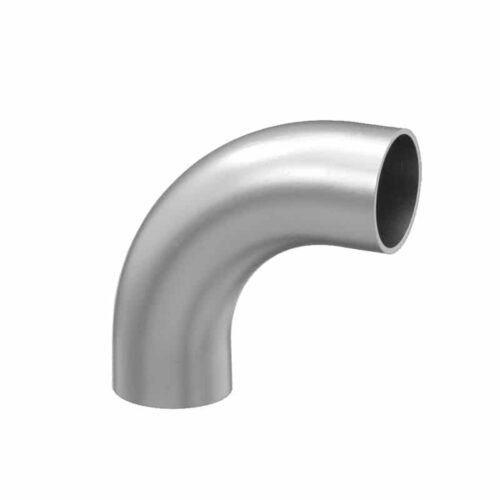

REPRESENTATIVE IMAGE

Attributes

A 5.36
B 3
Tube O.D. 2
Wall Thickness 0.065
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

200X0.065-WE90T-5.36

90° Tangent Weldable Elbow with 5.36″ Centerline

$50.00

3 in stock (can be backordered)

Part ID: 0700495


90-degree tangent elbow is a type of pipe fitting that enables a 90-degree change in the direction of a pipeline while maintaining a tangent alignment with the centerline of the pipe. This design minimizes pressure drop and allows for further system connections on an extended section of tubing.

Features

  • Tangent elbow design

Specifications

  • Manufactured from 304 stainless steel
