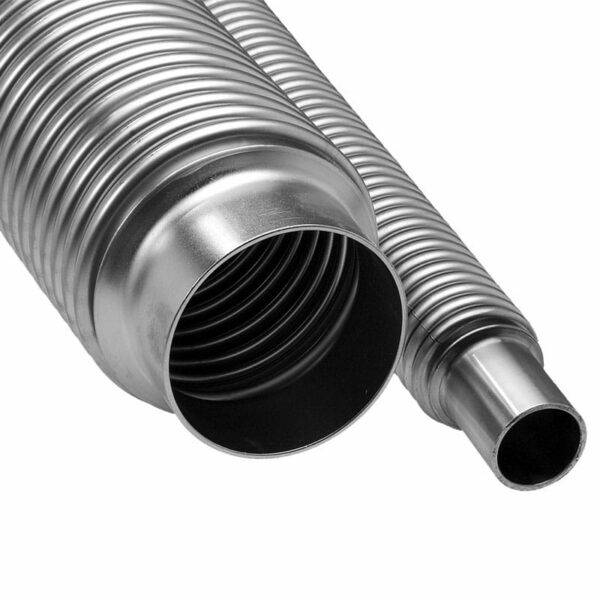

REPRESENTATIVE IMAGE

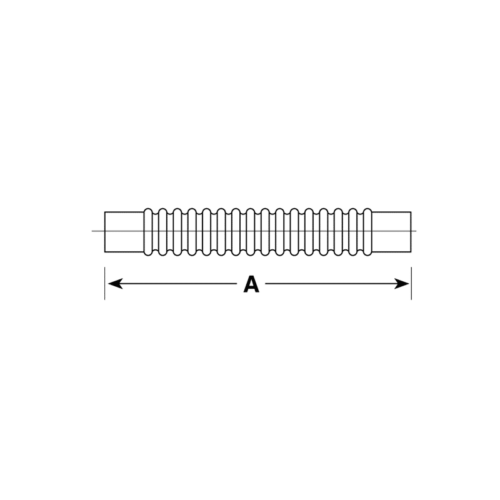

Attributes

A 18
Wall Thickness 0.006
Nominal Tube I.D. 1
3D CADLogin
Major Diameter 1.39
DrawingLogin

All dimensions are in inches unless otherwise specified.

TE-100-B-18.0

Thin Wall Bellow with 1 in. Weldable Ends, 18.00 in. OAL

Part ID: 0802006


















$215.00





































			Standard Lead Time:

Contact
















































Available on backorder


















































Featuring a 0.006 inch wall thickness, thin wall bellows offer vacuum users a flexible metal hosing with axial deflection +15% to -25% of the free length, helping to correct misaligned connections. The flexibility of the material also lends itself to providing vibration isolation.




Features






  • Thin wall design provides maximum flexibility
    •

  • Axial Deflection: +15%/-25% of free length
    •

  • Corrects misaligned connections
    •

  • Provides vibration isolation
    •









 Specifications






  • Weldable tube ends are manufactured from 304L stainless steel
    •

  • Flexible hose is manufactured from 321 stainless steel
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 18



                    Wall Thickness 0.006



                    Nominal Tube I.D. 1



                    3D CADLogin







                     Major Diameter 1.39



                    DrawingLogin

















All dimensions are in inches unless otherwise specified.
