REPRESENTATIVE IMAGE

Attributes

A 0.38
B 0.62
C 1.32
D 0.63
Accepts Tube O.D. 0.25
DrawingLogin
Wall Thickness 0.118
Accepts Tube O.D. 0.25
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

25-QDTN-1.32

1/4 in. Thin Wall Disconnect Coupling

$44.00

Need more than what you see in stock? Let us know and we can likely assemble in less than a day.

Available on backorder

Part ID: 1000104











Features






  • Vacuum rating: HV design 1×10-8 Torr
    •

  • Interchangeable with other quick disconnect style fittings
    •

  • Quick disconnects come standard with Buna-N seals (FKM is available)
    •

  • Quickly make and break vacuum seals
    •

  • Designed to accept standard inch tubing O.D.’s
    •

  •  Infinitely rotatable, sexless connection to tubing or gauges
    •

  • Reusable seals
    •










Specifications






  • Leak rating: <1x10M-9 std. cc/s helium
    •

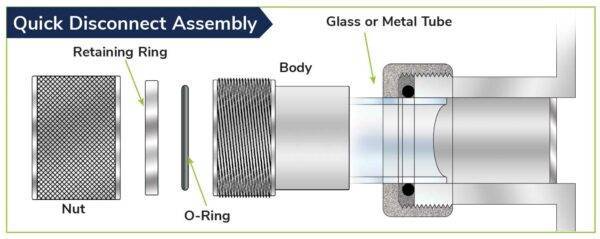

  • Body, plug, nut, and retaining ring manufactured from 304L stainless steel
    •

  • Seals: Standard – Buna-N O-ring (FKM O-ring available upon request)
    •

  • Limited quantities of brass couplings available upon request
    •




























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 0.38



                    B 0.62



                    C 1.32



                    D 0.63



                    Accepts Tube O.D. 0.25



                    DrawingLogin







                    Wall Thickness 0.118



                    Accepts Tube O.D. 0.25



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
