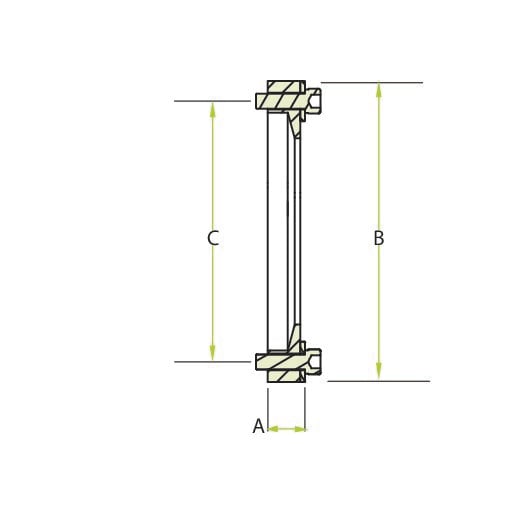

All dimensions are in inches unless otherwise specified.

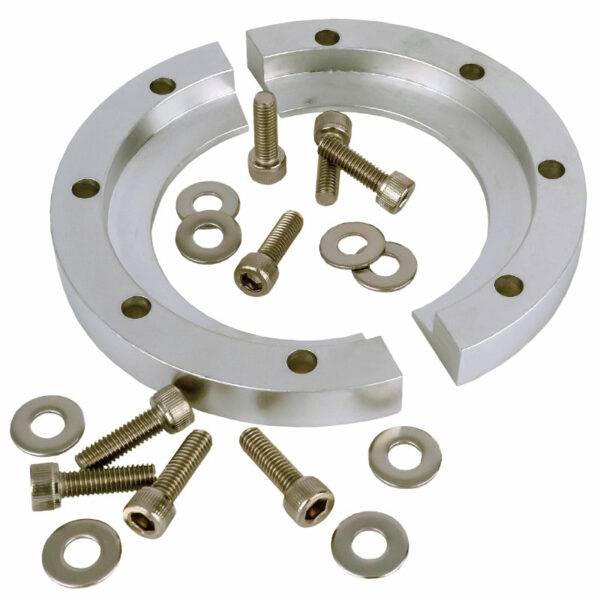

QF25-BHC

QF25 Bulkhead Clamp

Part ID: 4000001


















$24.50



































































6 in stock (can be backordered)

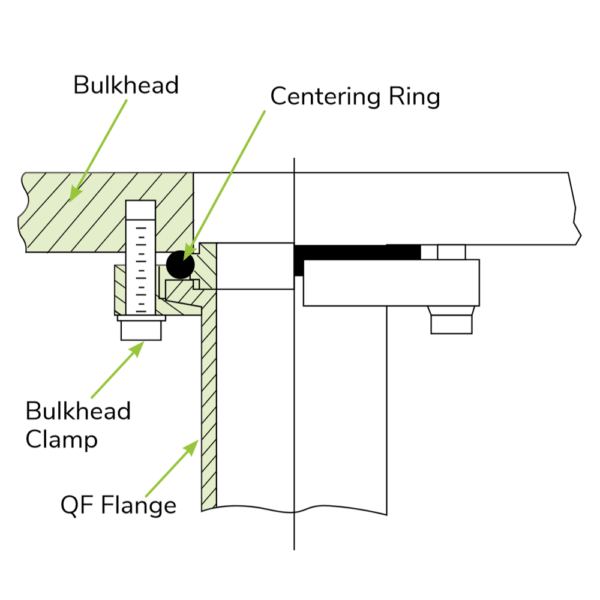

Bulkhead clamps are used to fasten ISO-QF (KF) style flanges and components directly to valves, chamber walls, baseplates, or bulkheads. The object to which the flange is sealing must have a compatible bolt hole pattern and sealing groove machined into the sealing surface.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  •  Compatible with all ISO standard vacuum flanges and fittings
    •

  •  Utilizes a standard QF seal assembly
    •

  •  Bolts included
    •









Specifications






  • Materials:
    •



    • Body: Aluminum
      •

    • Hardware (pins, studs and hinges): Stainless Steel
      •

    • Bolt size: 10-32×5/8
      •





























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 0.39



                    B 2.38



                    C 1.89



                    # Bolts 6



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
