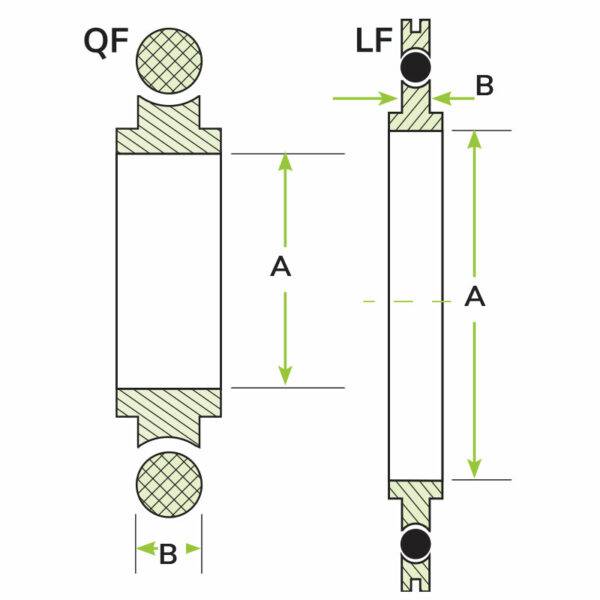

All dimensions are in inches unless otherwise specified.

QF16-075-CTR-AL-SN

QF16 Centering Ring Assembly Aluminum/Silicone

$7.30

Need more than what you see in stock? Let us know and we can likely assemble in less than a day.

Available on backorder

Part ID: 4000030

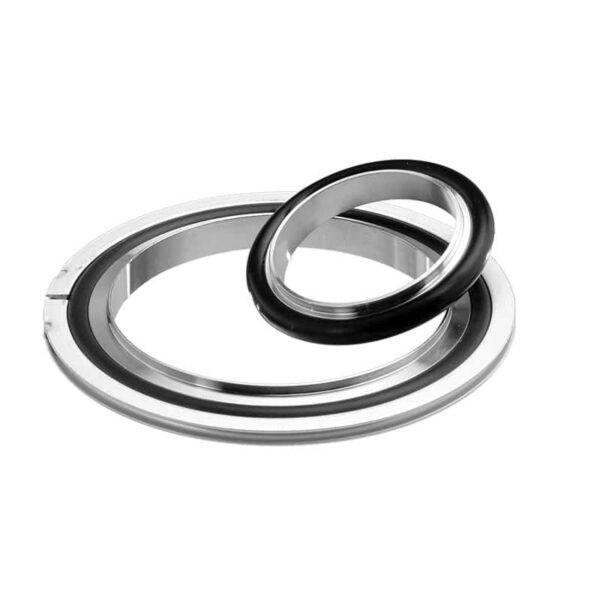

Centering Ring Assemblies include a supportive inner aluminum ring and an elastomer outer ring (o-ring) which is compressed between the ISO flanges to create a vacuum tight seal.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  •  Compatible with all ISO standard vacuum flanges and fittings
    •

  •  Reusable
    •

  • Quick sealing and disassembly
    •

  •  Metal centering ring aligns flanges during seal assembly and provides support for the elastomer sealing ring
    •









Specifications






  • Materials:
    •



    •  Centering Ring: Aluminum
      •

    • O-Ring: Buna-N, Fluorocarbon (FKM) or Silicone
      •

    • Spacer Ring (LF sizes only): Aluminum
      •





























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
