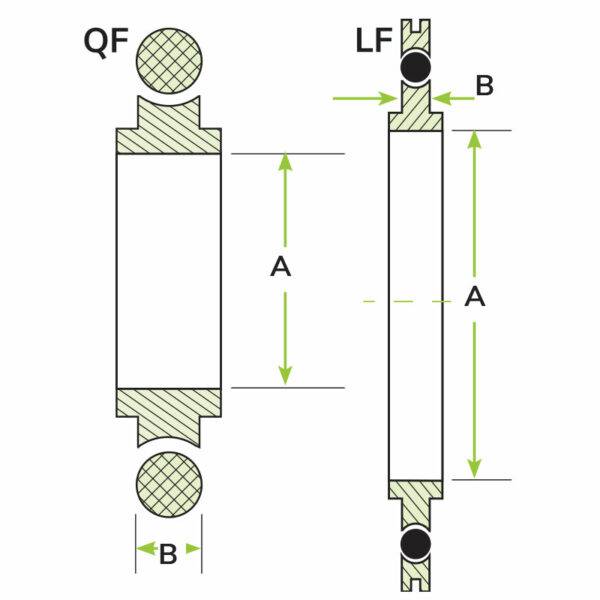

Figure 1
3D CADLogin
DrawingLogin
Mesh Size 72

All dimensions are in inches unless otherwise specified.

QF16-CTR-SM-VT

QF16 Centering Assembly w/ SS Screen

$31.00

Need more than what you see in stock? Let us know and we can likely assemble in less than a day.

Available on backorder

Part ID: 4000050

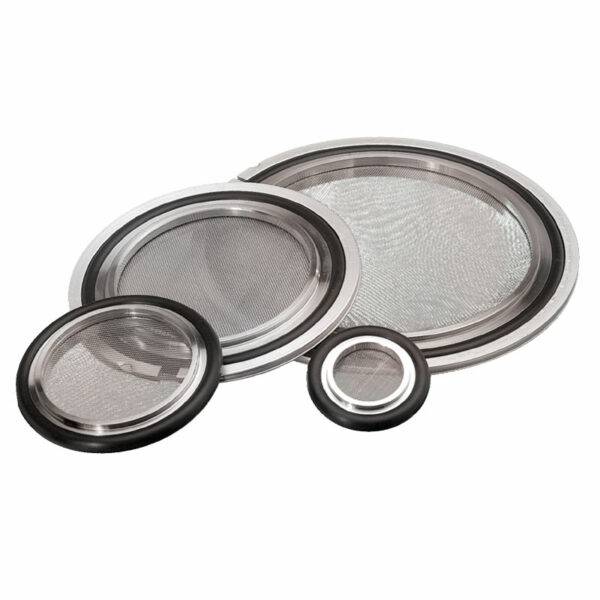

Screen mesh centering ring assemblies are useful in situations in which a vacuum system or instrument needs to be protected from contamination by particulate generated from outside the system or from within. The supportive metallic ring for these seals has a screen mesh insert covering the inner aperture with a standard mesh size of 72.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  •  Compatible with all ISO standard vacuum flanges and fittings
    •

  •  Reusable
    •

  • Quick sealing and disassembly
    •

  •  Metal centering ring aligns flanges during seal assembly and provides support for the elastomer sealing ring
    •

  •  Replaceable O-ring
    •









Specifications






  • Materials:
    •



    •  Centering Ring:
      •



      • Standard: 304L Stainless Steel
        •



    • O-Ring:
      •



      • Standard: FKM
        •

      •  Alternative: Buna or Silicone
        •
