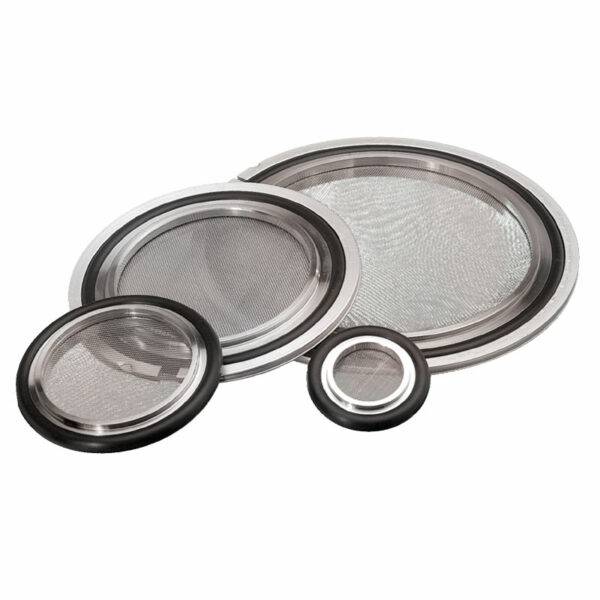

REPRESENTATIVE IMAGE

Attributes

A0.86
B0.21
Figure1
3D CADLogin
DrawingLogin
Mesh Size72

All dimensions are in inches unless otherwise specified.

QF25-CTR-SM-VT

QF25 Centering Ring Assembly w/ SS Screen

Part ID: 4000051
$34.20
Need more than what you see in stock? Let us know and we can likely assemble in less than a day.
25 in stock (can be backordered)


Screen mesh centering ring assemblies are useful in situations in which a vacuum system or instrument needs to be protected from contamination by particulate generated from outside the system or from within. The supportive metallic ring for these seals has a screen mesh insert covering the inner aperture with a standard mesh size of 72.
Features
  • High Vacuum Rated to 1×10-8 Torr
  •  Compatible with all ISO standard vacuum flanges and fittings
  •  Reusable
  • Quick sealing and disassembly
  •  Metal centering ring aligns flanges during seal assembly and provides support for the elastomer sealing ring
  •  Replaceable O-ring
Specifications
  • Materials:
    •  Centering Ring:
      • Standard: 304L Stainless Steel
    • O-Ring:
      • Standard: FKM
      •  Alternative: Buna or Silicone

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A0.86
B0.21
Figure1
3D CADLogin
DrawingLogin
Mesh Size72
All dimensions are in inches unless otherwise specified.
