QF10/16-ACR-VT

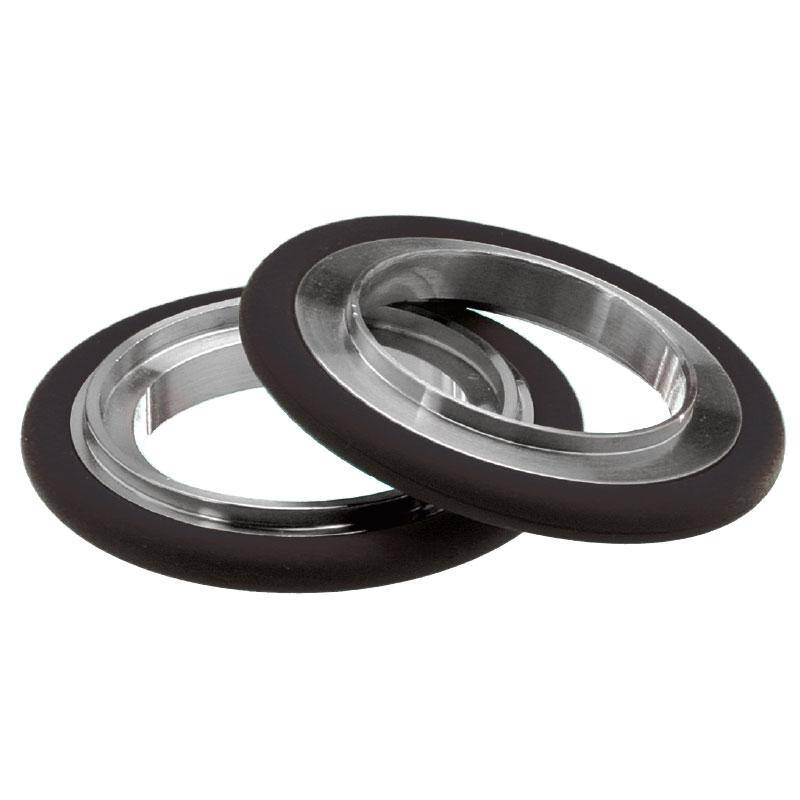

QF10/16 Stainless Steel Centering Ring Assembly

Part ID: 4000054


















$13.20


























Need more than what you see in stock? Let us know and we can likely assemble in less than a day.




















			Standard Lead Time:

4 Weeks
















































Available on backorder


















































Adaptive centering ring assembles allow you to adapt directly from the rarely used ISO-QF sizes (QF10, QF20, and QF32) to commonly available ISO-QF sizes (QF16, QF25, QF40). The adapted assembly can be fastened with a standard clamp that corresponds with the larger of the two sizes.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  •  Compatible with all ISO standard vacuum flanges and fittings
    •

  •  Reusable
    •

  • Quick sealing and disassembly
    •

  •  Metal centering ring aligns flanges during seal assembly and provides support for the elastomer sealing ring
    •

  •  Replaceable O-ring
    •









Specifications






  • Materials:
    •





      •  Centering Ring: 316 Stainless steel (Aluminum Available Upon Request)
        •



    • O-Ring:
      •





        •  Standard: PTFE
          •

        •  Alternative: Buna or Silicone
          •
