• 4000073
  • 4000073

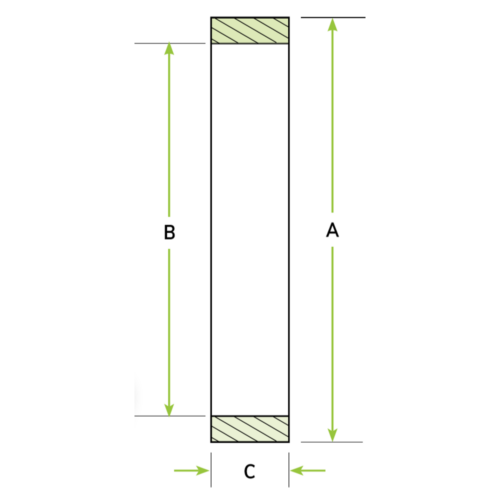

Attributes

A 2.75
B 2.62
C 0.15
Max PSIG 50
3D CADLogin
DrawingLogin

QF50-200-OPR

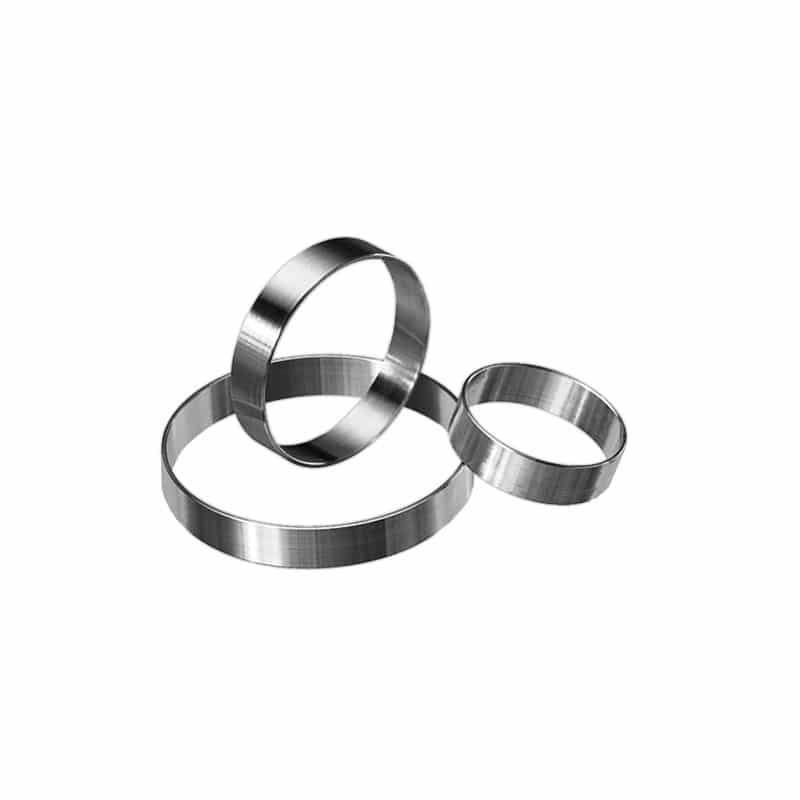

QF50 Over Pressure Rings

$13.00

45 in stock (can be backordered)

Part ID: 4000076
















This centering ring accessory creates a barrier on the outer diameter of the elastomer sealing ring to prevent “blow out” due to the presence of pressures greater than 1 standard atmosphere within a vacuum system. A centering ring assembly with an over pressure ring can withstand up to 100psi of pressure depending on the flange you are using.


Features



  •  High Vacuum Rated to 1×10-8 Torr
    •
  •  Compatible with all ISO standard vacuum flanges
    •
  •  Reusable
    •
  •  Quick sealing and disassembly
    •




Materials



  •  304 Stainless steel
    •




 Product Notes



  •  Retains o-ring if your system is exposed to a burst of pressure
    •
