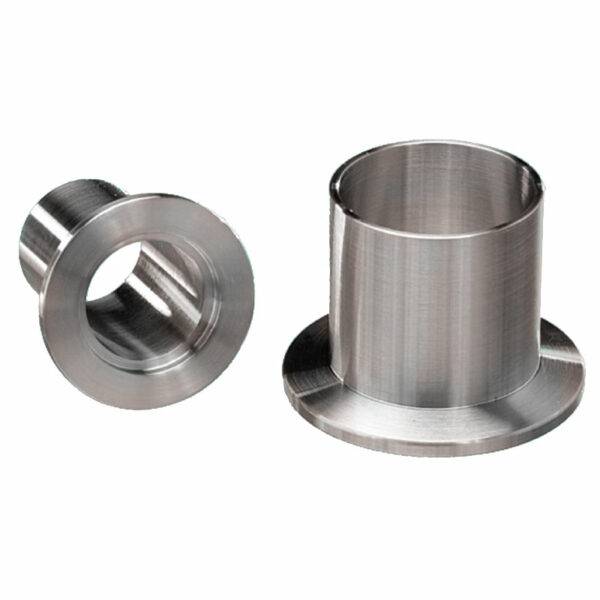

REPRESENTATIVE IMAGE

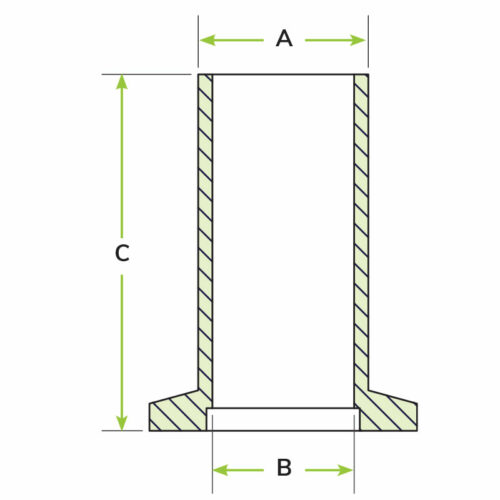

Attributes

A0.75
B0.68
C1.58
Material6061-T6 Aluminum
Tube Size0.75
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF16-075-HNM-1.58-AL

ISO-QF16 Machined Half Nipple, 3/4 in. OD Aluminum

Part ID: 4000145
$13.00
65 in stock (can be backordered)


Features
  • High Vacuum Rated to 1×10-8 Torr
  •  Compatible with all ISO standard vacuum flanges and fittings
  •  Reusable
  • Quick sealing and disassembly
  • Retains o-ring if your system is exposed to a burst of pressure
  • Butt weld
  • Designed to fit standard inch tubing O.D.’s
  • Machined from solid bar – no welds
Specifications
  •  Materials:
  •  Standard:
    •  Flanges: 304L Stainless Steel
    •  Fitting: 304 Stainless Steel
  •  Alternative:
    •  316 Stainless Steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A0.75
B0.68
C1.58
Material6061-T6 Aluminum
Tube Size0.75
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
