Attributes

A 2.51
B 0.47
C 0.25
D 3
E 2.375

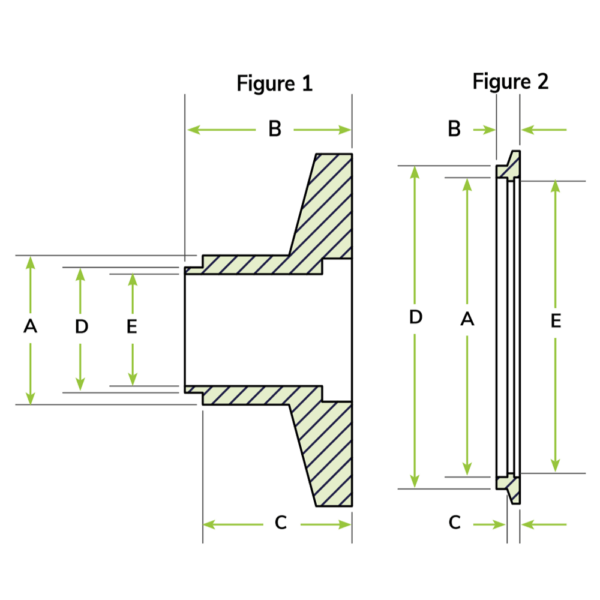

Figure 2
Material 304 SST
Tube Size 2.5
3D CADLogin
DrawingLogin

QF63-250-SF

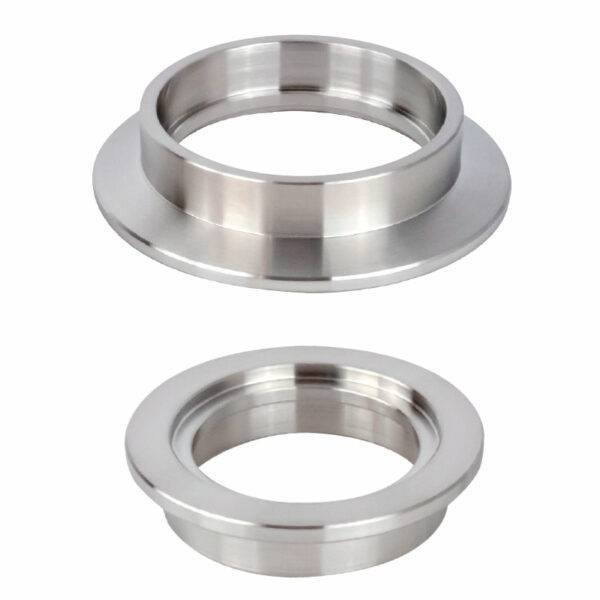

ISO-QF63 Socket Weld Flange, 2.5″ Tube

$74.00

8 in stock (can be backordered)

Part ID: 4001081







Features


  • High Vacuum Rated to 1×10-8 Torr
    •
  • Bakeable to 200°C
    •
  • Compatible with all ISO standard vacuum flanges and fittings
    •
  • Quick sealing and disassembly
    •



Materials


  • Standard:

    • 304 Stainless Steel
      •
    • 316 Stainless Steel
      •

    •



Product Notes


  • Internal weld
    •
  • Self-aligning
    •
  • Designed to fit standard inch tubing O.D.’s
    •
  • QF63-QF200 uses LF Centering Rings
    •
