REPRESENTATIVE IMAGE

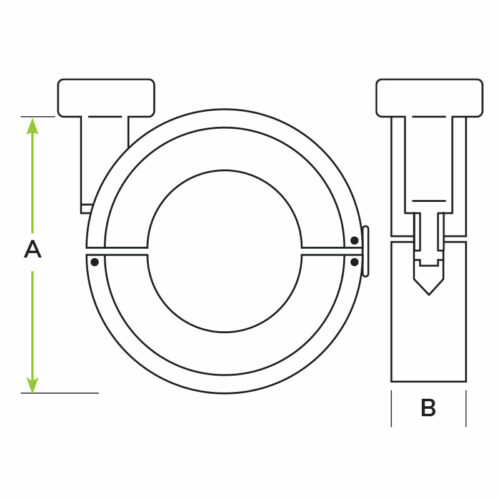

Attributes

A 3.94
B 0.63
Tube Size 2
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF50-CLMP-AL

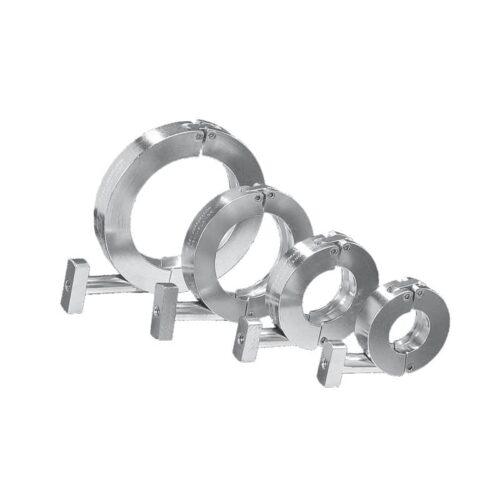

QF50 CNC Aluminum Clamp

Part ID: 4050003


















$47.50



































































142 in stock (can be backordered)


















































Quick clamps such as the ANCORP CNC Aluminum Clamp are the commonly preferred method for fastening ISO flange connections due to the fact that they offer the fastest and easiest fastening method for creating a reliable ISO vacuum seal.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  • Compatible with all ISO standard vacuum flanges and fittings
    •

  • The design eliminates the need for over-pressure rings on sizes QF16, QF25, and QF40
    •









Specifications






  • Material
    •



    • Body: Stainless Steel
      •

    • Hardware (pins, studs and hinges): Stainless Steel
      •



  •  Machined from solid bar for greatly increased strength
    •

  •  Integrated locking handle to prevent accidental opening
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 3.94



                    B 0.63



                    Tube Size 2



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
