• 4500001
  • 4500001

REPRESENTATIVE IMAGE

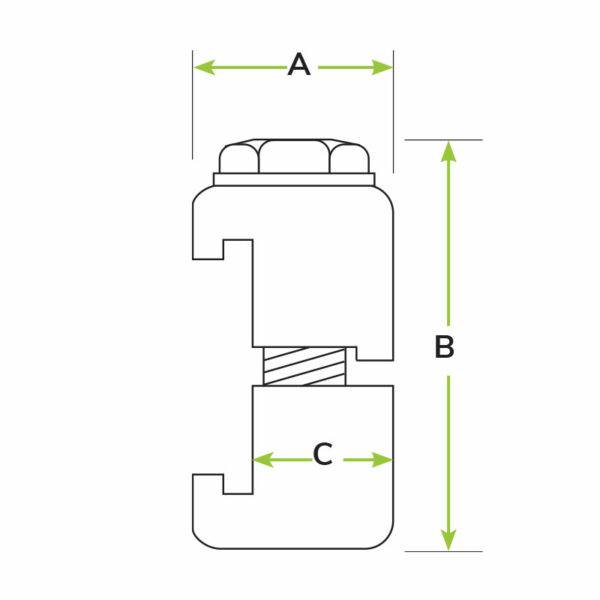

Attributes

A1.34
B2.56
C1.04
Flange Size320 / 400 / 500
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF320/500-DCC

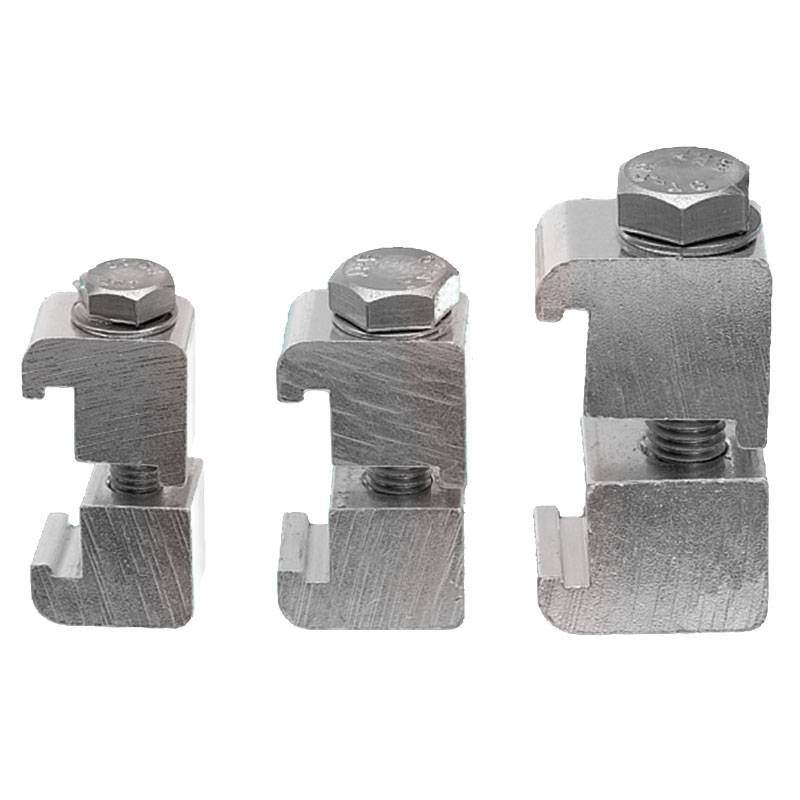

LF320/400/500 Double Claw Clamp

Part ID: 4500002
$14.50
13 in stock (can be backordered)


Claw clamps require the use of more than one clamp per flange connection. They require more work per seal assembly, but offer greater strength than the quick clamp if the seal assembly must bear a lateral load. They are traditionally the most popular clamps for ISO sizes LF63 and larger. These clamps are the only clamps capable of sealing sizes LF250 to LF500.
Features
  • High Vacuum Rated to 1×10-8 Torr
  • Compatible with all ISO standard vacuum flanges and fittings
  •  Fastens ISO-LF flanges
Specifications
  • Material
    • Body: Aluminum
    • Hardware (pins, studs and hinges): Stainless Steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A1.34
B2.56
C1.04
Flange Size320 / 400 / 500
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
