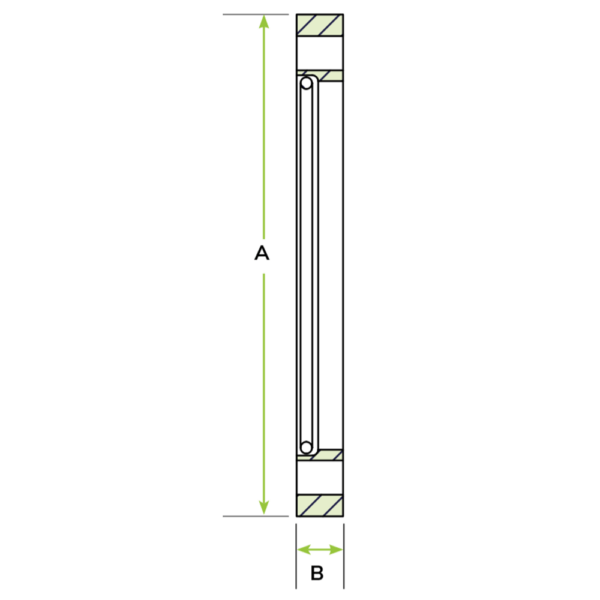

Attributes

A O.D. 24.02
B Thickness 0.79
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF500-2000-RBR

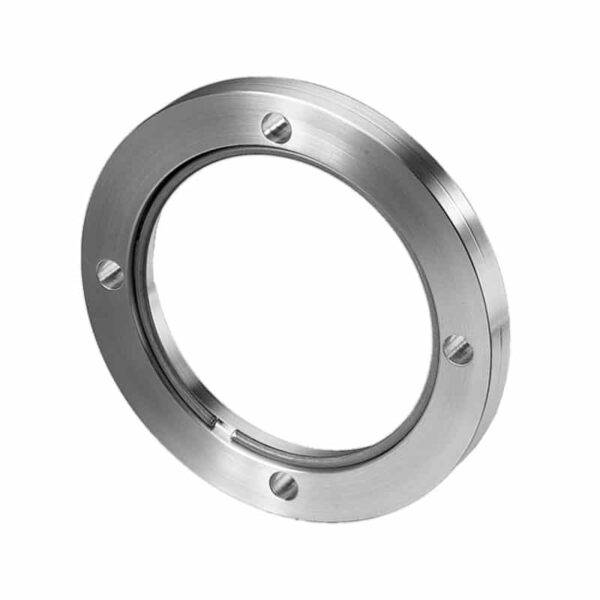

LF500-2000 Rotatable Bolt Ring

Part ID: 4500068


















$1,124.00





































			Standard Lead Time:

9 Weeks
















































Available on backorder


















































Rotatable bolt rings are a subcomponent that fits around the outer diameter of a claw clamp-style LF flange. This allows the flange to behave as a rotatable bolted style LFB flange to ease bolt-hole alignment issues when assembling the vacuum system.  After the rotatable bolt ring is mounted to the LF flange, a bolt kit is used to fasten the two flanges together.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  •  Compatible with all ISO standard vacuum flanges and fittings
    •

  •  Has a low profile compared to claw clamp fasteners
    •

  • Converts ISO-LF flanges to rotatable ISO-LFB flanges
    •

  •  O.D. and bolt pattern match ISO-LFB flanges
    •

  •  Retaining ring included
    •









Specifications






  • Materials:
    •



    • Body: Aluminum
      •

    • Retaining Ring: Stainless Steel
      •
