LFB320-1275-HN-3.94

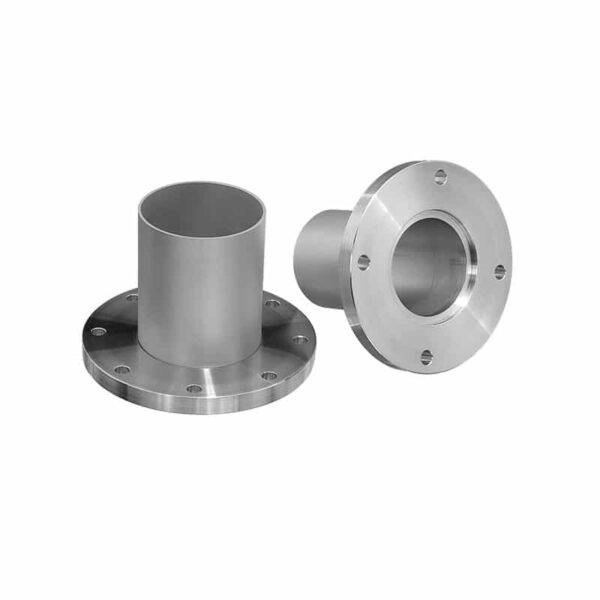

Half nipples are manufactured with a flange on one end and raw tubing on the other. They are often welded onto a custom vacuum system or instrument by a customer with in-huse welding capabilities. They can also be used with quick connection fittings to make a vacuum tight connection without welding.

Features

• High Vacuum Rated to 1×10^-8 Torr
• Bakeable to 200°C
• Compatible with all ISO standard vacuum flanges and fittings
• Quick sealing and disassembly

Materials

• Standard:
  • 304 Stainless Steel
  • 316 Stainless Steel
  • 6061 Aluminum

Product Notes

• Butt weld
• Designed to fit standard inch tubing O.D.’s
• Highly customizable

Options (Contact us for price and delivery)

• Custom lengths
• Tapped bolt holes
• ISO-QF large size flanges
