REPRESENTATIVE IMAGE

Attributes

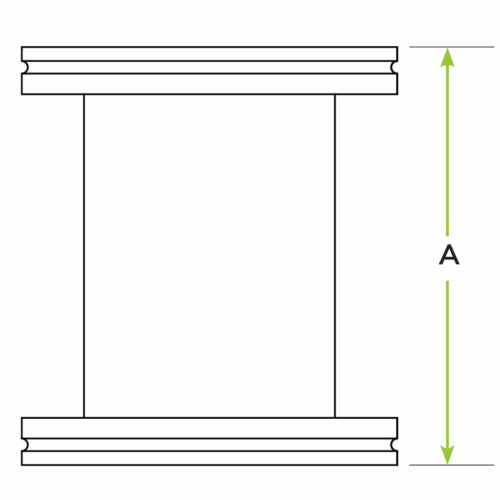

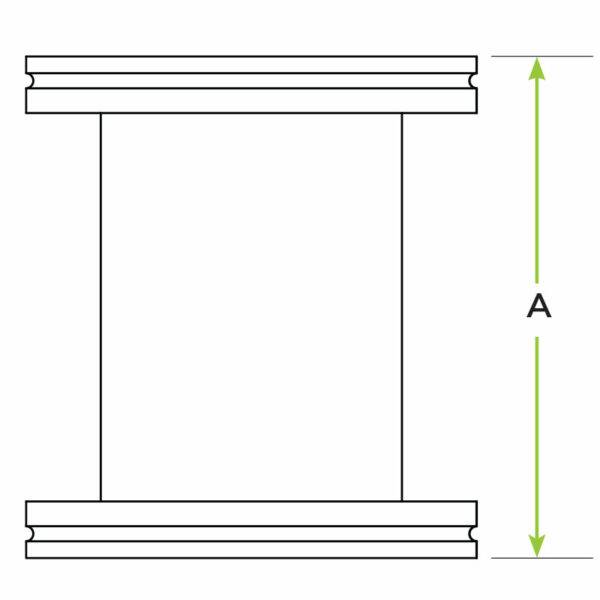

A 4.18
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF100-400-N-4.18

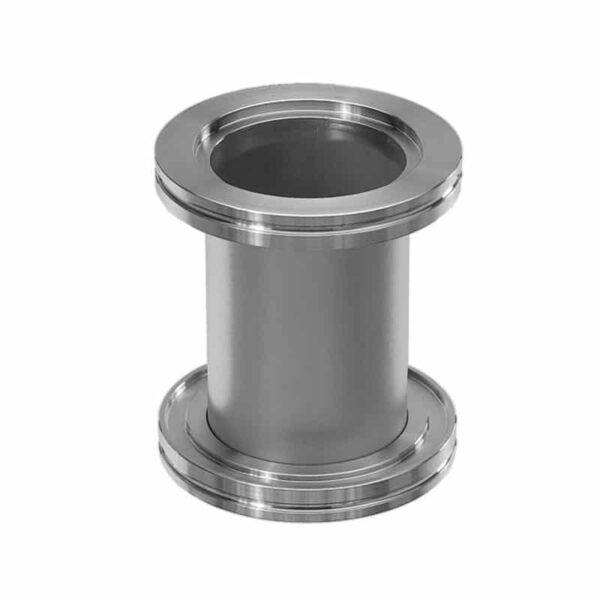

ISO-LF100 Nipple 4 in. Tube, 4.18″ OAL

$300.00

Available on backorder

Part ID: 4500211


Nipples are used to create a weld free straight connection within a vacuum system. They are also used as straight adapters between different tubing sizes or flange types.

Features

  • High Vacuum Rated to 1×10-8 Torr
  • Bakeable to 200°C
  • Compatible with all ISO standard vacuum flanges and fittings
  • Quick sealing and disassembly

Specifications

  • Materials:
  • Standard:
    • Flanges: 304L Stainless Steel
    • Fitting: 304 Stainless Steel
