Attributes

A 3.03
B 0.154
Figure 2
3D CADLogin
DrawingLogin

LF80-CTR-SM-VT

LF80 Centering Assembly w/ SS Screen

$270.00

65 in stock (can be backordered)

Part ID: 4500342

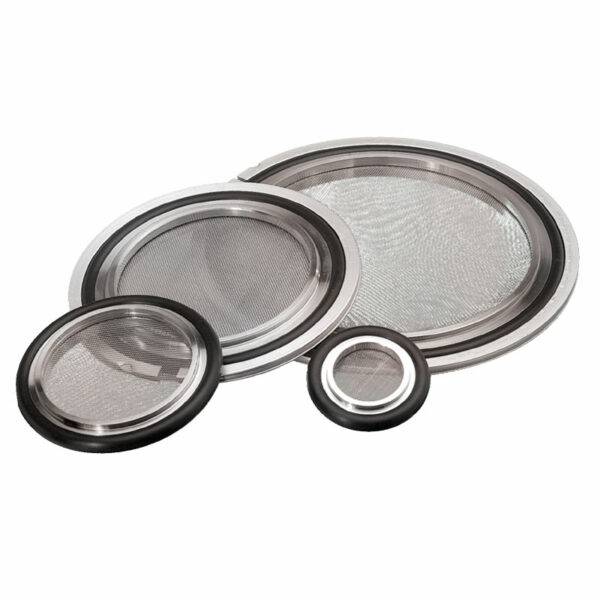

Screen mesh centering ring assemblies are useful in situations in which a vacuum system or instrument needs to be protected from contamination by particulate generated from outside the system or from within. The supportive metallic ring for these seals has a screen mesh insert covering the inner aperture.



Features

  • High Vacuum Rated to 1×10-8 Torr
  • Compatible with all ISO standard vacuum flanges
  • Reusable
  • Quick sealing and disassembly



Materials

  • Centering Ring:
    • Standard: 316 Stainless steel
  • O-Ring:
    • Standard: Viton™
    • Alternative: Buna or Silicone (Contact us for price and delivery)



Options (Contact us for price and delivery)

  • Larger sizes
  • Mesh sizes



Product Notes

  • Metal centering ring aligns flanges during seal assembly and provides support for the elastomer sealing ring
  • Replaceable O-ring
