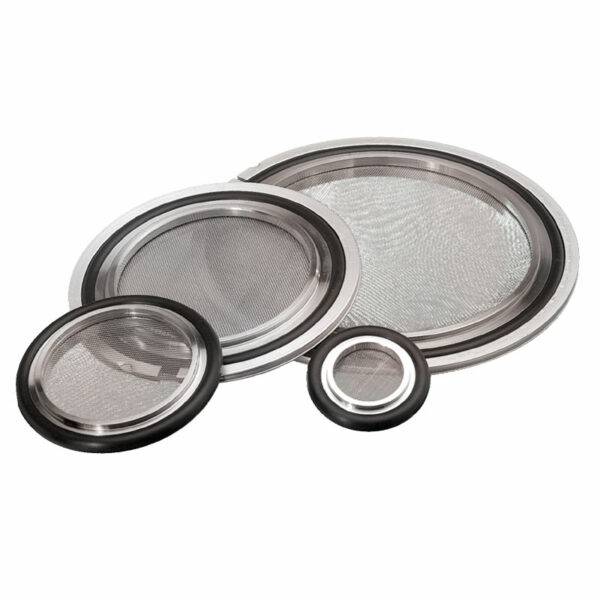

REPRESENTATIVE IMAGE

Attributes

A 5.67
B 0.154
Figure 2
3D CADLogin
DrawingLogin
Mesh Size 72

All dimensions are in inches unless otherwise specified.

LF160-CTR-SM-VT

LF160 Centering Assembly w/ SS Screen

$350.00

Need more than what you see in stock? Let us know and we can likely assemble in less than a day.

8 in stock (can be backordered)

Part ID: 4500344


Screen mesh centering ring assemblies are useful in situations in which a vacuum system or instrument needs to be protected from contamination by particulate generated from outside the system or from within. The supportive metallic ring for these seals has a screen mesh insert covering the inner aperture.

Features

  • High Vacuum Rated to 1×10-8 Torr
  • compatible with all ISO standard vacuum flanges
  • Reuseable
  • Quick sealing and disassembly

Materials

  • Centering Ring:
    • Standard: 316 Stainless Steel
  • O-Ring:
    • Standard: FKM
    • Alternative: Buna or Silicone (Contact us for price and delivery)

Product Notes

  • Metal centering ring aligns flanges during seal assembly and provides support for the elastomer sealing ring
  • Replaceable O-ring

Options: Contact us for price and delivery

  • Larger sizes
