CF133-000

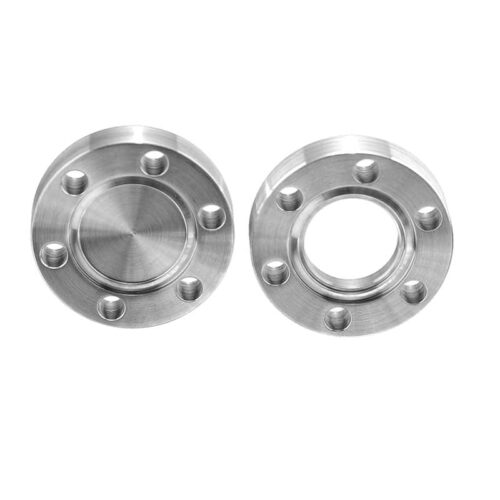

304L SS 1.33 in. (DN 16) Blank Fixed ConFlat Flange, Clearance Bolt Holes

$12.50

276 in stock (can be backordered)

Part ID: 5000000









1.33 inch (DN 16) outer diameter ConFlat (CF) non-rotatable flanges ideal for UHV applications.




 Features






  •  Designed to fit standard inch tubing O.D.’s
    •

  •  Self-aligning
    •

  •  Internal weld
    •

  •  Sexless flanges
    •

  •  Tapped and clearance (through-hole) bolt holes available
    •

  •  Blank flanges close unused ports or custom modify
    •

  •  Interchangeable with other ConFlat style flanges
    •

  •  Adapters to other flange systems available
    •









 Specifications






  •  Flange Material: 304L Stainless Steel
    •

  •  Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  •  Temperature range: -200°C up to 450°C
    •

  •  Leak rating < 1×10-9 std. cc/s helium
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

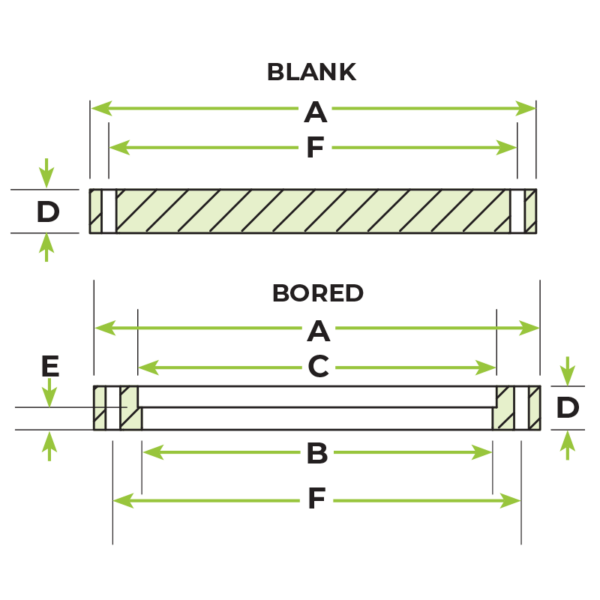

Attributes
