CF133-000-WNB

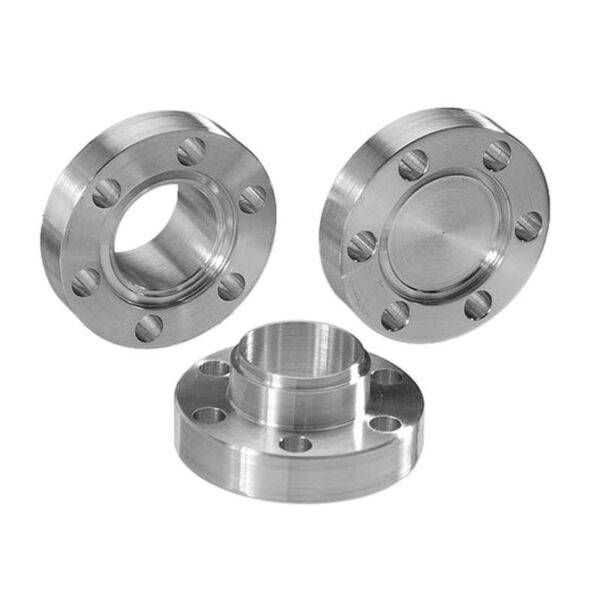

304L SS 1.33 in. (DN 16) Blank Fixed ConFlat Flange with Butt Weld, Clearance Bolt Holes
Part ID: 5000002
$16.50
1.33 inch outer diameter ConFlat (DN16 CF) fixed flanges with weld neck ease welding to small diameter tubing and lessen the possibility that the heat from welding will warp the flange.
Features
- Designed to fit standard inch tubing O.D.’s
- Self-aligning
- External weld
- Available with and without 0.060 weld prep
- Sexless flanges
- Rotatable flanges ease bolt hole alignment
- Tapped and clearance (through-hole) bolt holes available
- Blank flanges close unused ports or custom modify
- Interchangeable with other ConFlat style flanges
Specifications
- Flange Material: 304L Stainless Steel
- Vacuum rated: UHV (approx. 1×10-13 Torr)
- Temperature range: -200°C up to 450°C
Accordion #1
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Accordion #2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes

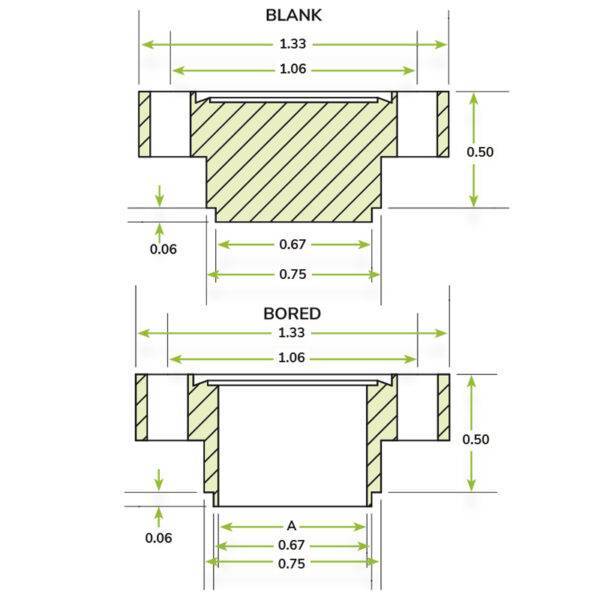

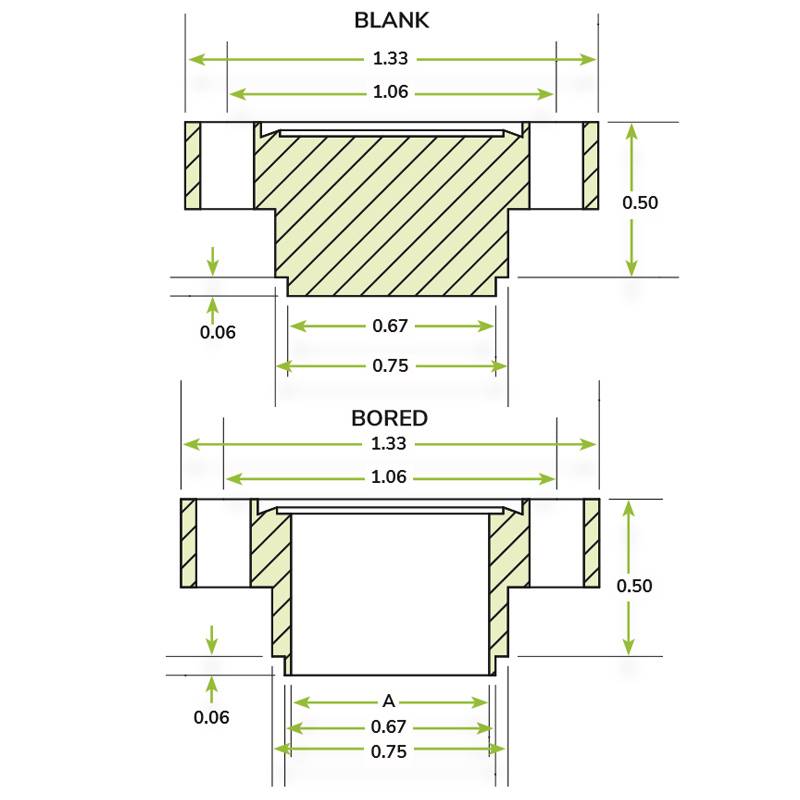

All dimensions are in inches unless otherwise specified.
