CF133-075
1.33 in. (DN 16) Fixed, Clearance ConFlat Flange, 0.63 in. ID
$15.00
51 in stock (can be backordered)
Part ID: 5000006

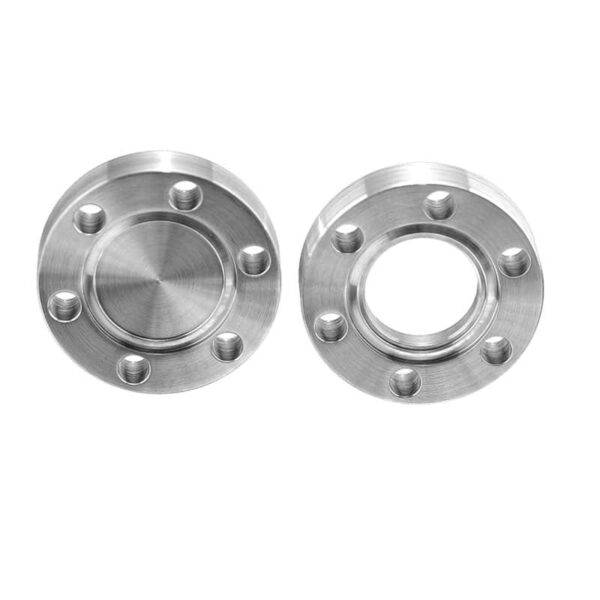

1.33 inch (DN 16) outer diameter ConFlat (CF) non-rotatable flanges ideal for UHV applications.
Features
- Designed to fit standard inch tubing O.D.’s
- Self-aligning
- Internal weld
- Sexless flanges
- Tapped and clearance (through-hole) bolt holes available
- Blank flanges close unused ports or custom modify
- Interchangeable with other ConFlat style flanges
- Adapters to other flange systems available
Specifications
- Flange Material: 304L Stainless Steel
- Vacuum rated: UHV (approx. 1×10-13 Torr)
- Temperature range: -200°C up to 450°C
- Leak rating < 1×10-9 std. cc/s helium
Accordion #1
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Accordion #2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes

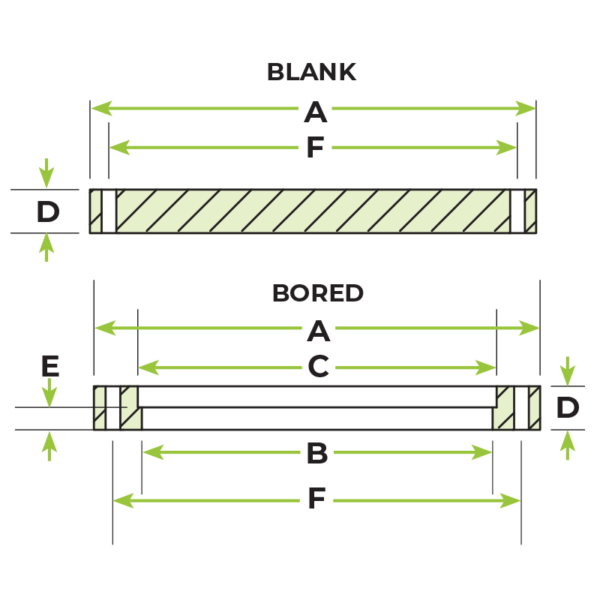

All dimensions are in inches unless otherwise specified.
