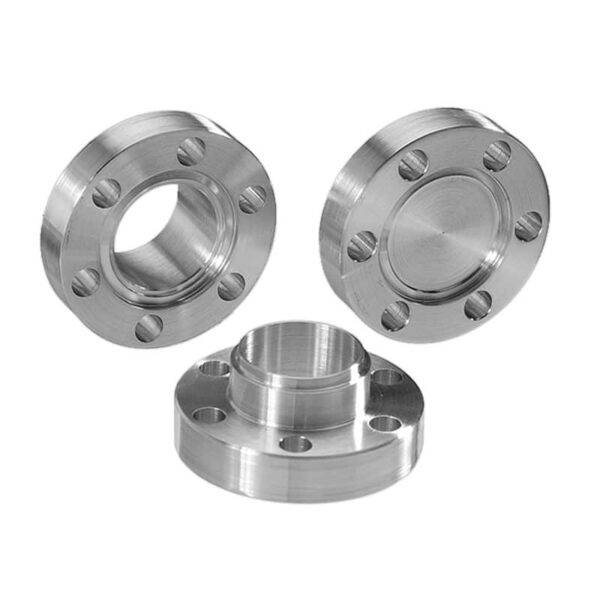

REPRESENTATIVE IMAGE

Attributes

A -
Thrd 8-32
Flange Style Fixed
Bolt Hole Style Tapped
Bolt Hole Number 6
3D CADLogin
DrawingLogin

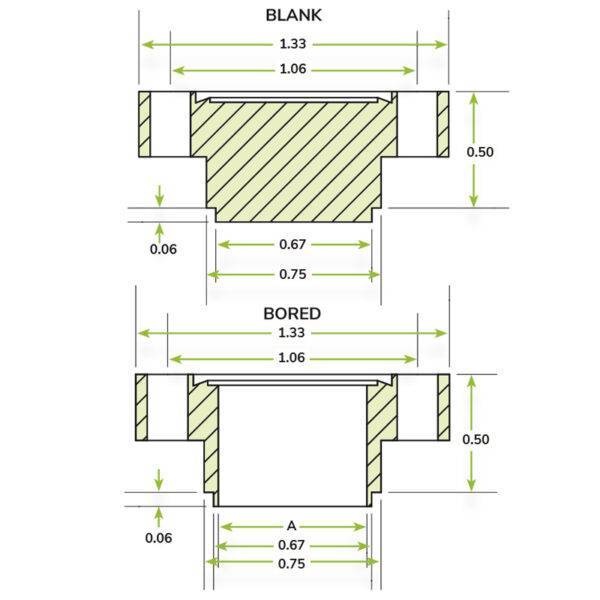

All dimensions are in inches unless otherwise specified.

CF133T-000-WN

304L SS 1.33 in. (DN 16) Blank Fixed ConFlat Flange with Weld Neck, Tapped Bolt Holes

$19.30

2 in stock (can be backordered)

Part ID: 5000010









1.33 inch outer diameter ConFlat (DN16 CF) fixed flanges with weld neck ease welding to small diameter tubing and lessen the possibility that the heat from welding will warp the flange.




 Features






  •  Designed to fit standard inch tubing O.D.’s
    •

  •  Self-aligning
    •

  •  External weld
    •

  •  Available with and without 0.060 weld prep
    •

  •  Sexless flanges
    •

  •  Rotatable flanges ease bolt hole alignment
    •

  •  Tapped and clearance (through-hole) bolt holes available
    •

  •  Blank flanges close unused ports or custom modify
    •

  •  Interchangeable with other ConFlat style flanges
    •









 Specifications






  •  Flange Material: 304L Stainless Steel
    •

  •  Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  •  Temperature range: -200°C up to 450°C
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A -



                    Thrd 8-32



                    Flange Style Fixed



                    Bolt Hole Style Tapped



                    Bolt Hole Number 6



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
