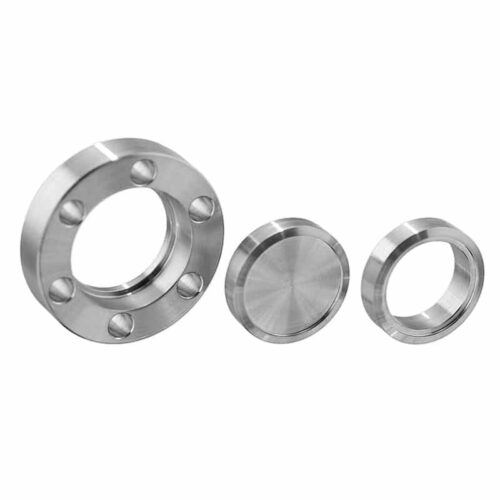

REPRESENTATIVE IMAGE

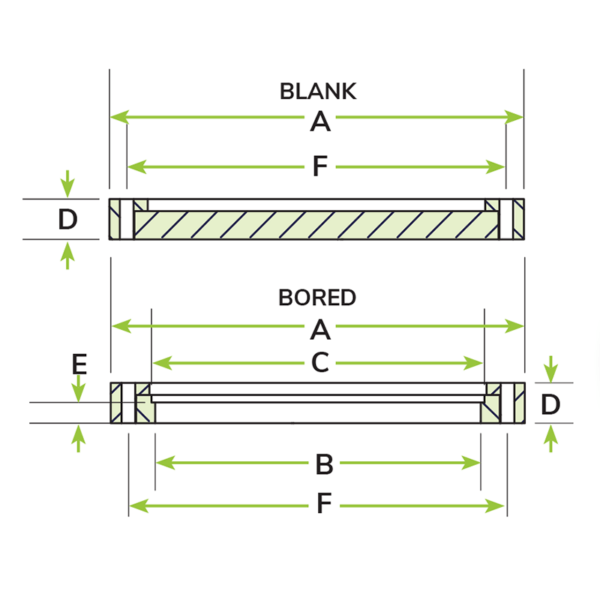

Attributes

A1.33
B0.26
C-
D0.3
E-
F1.06
Thrd0.17
Flange StyleRotatable
Bolt Hole StyleClearance
Bolt Hole Number6
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF133R-025

304L SS 1.33 in. (DN 16) Rotatable ConFlat Flange with 1/4 in. Inner Diameter, Clearance Bolt Holes

Part ID: 5000021
$17.50
Need more than what you see in stock? Let us know and we can likely assemble in less than a day.
Standard Lead Time:
4 Weeks
Available on backorder


1.33 inch outer diameter ConFlat rotatable flanges ideal for UHV applications.
 Features
  •  Designed to fit standard inch tubing O.D.’s
  •  Self-aligning
  •  Internal weld
  •  Sexless flanges
  •  Tapped and clearance (through-holes) bolt holes available
  •  Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  •  Adapters to other flange systems available
 Specifications
  •  Flange Material: 304L Stainless Steel
  •  Vacuum rated: UHV (approx. 1×10-13 Torr)
  •  Temperature range: -200°C up to 450°C

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A1.33
B0.26
C-
D0.3
E-
F1.06
Thrd0.17
Flange StyleRotatable
Bolt Hole StyleClearance
Bolt Hole Number6
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
