• 5000094
  • 5000094

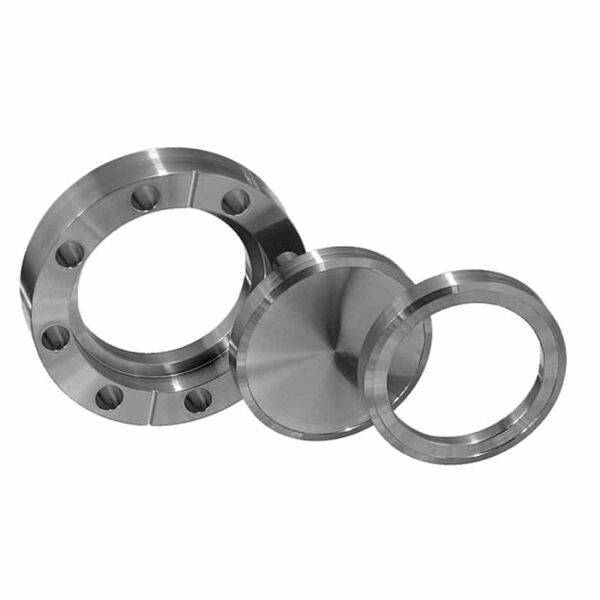

REPRESENTATIVE IMAGE

Attributes

A 3.37
B 1.875
C 2.01
D 0.68
E 0.225
F 2.85
Thrd 5/16-24
Flange Style Rotatable
Bolt Hole Style Tapped
Bolt Hole Number 8
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF338RT-200

304L SS 3.38 in. (DN 50) Rotatable ConFlat Flanges with 2 in. Inner Diameter, Tapped Bolt Holes

$67.00

Need more than what you see in stock? Let us know and we can likely assemble in less than a day.

Available on backorder

Part ID: 5000099









3.375 inch outer diameter ConFlat non-rotatable flanges ideal for UHV applications.




 Features






  •  Designed to fit standard inch tubing O.D.’s
    •

  •  Self-aligning
    •

  •  Internal weld
    •

  •  Sexless flanges
    •

  •  Tapped and clearance (through-holes) bolt holes available
    •

  •  Blank flanges close unused ports or custom modify
    •

  • Interchangeable with other ConFlat style flanges
    •

  •  Adapters to other flange systems available
    •









 Specifications






  •  Flange Material: 304L Stainless Steel
    •

  •  Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  •  Temperature range: -200°C up to 450°C
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 3.37



                    B 1.875



                    C 2.01



                    D 0.68



                    E 0.225



                    F 2.85



                    Thrd 5/16-24



                    Flange Style Rotatable



                    Bolt Hole Style Tapped



                    Bolt Hole Number 8



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
