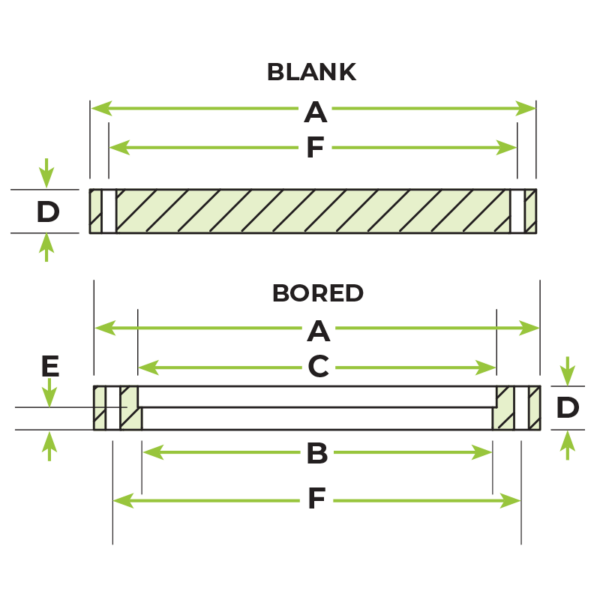

Attributes

A 4.62
B -
C -
D 0.75
E -
F 4.03
Thrd 5/16-24
Flange Style Fixed
Bolt Hole Style Tapped
Bolt Hole Number 10
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF462T-000

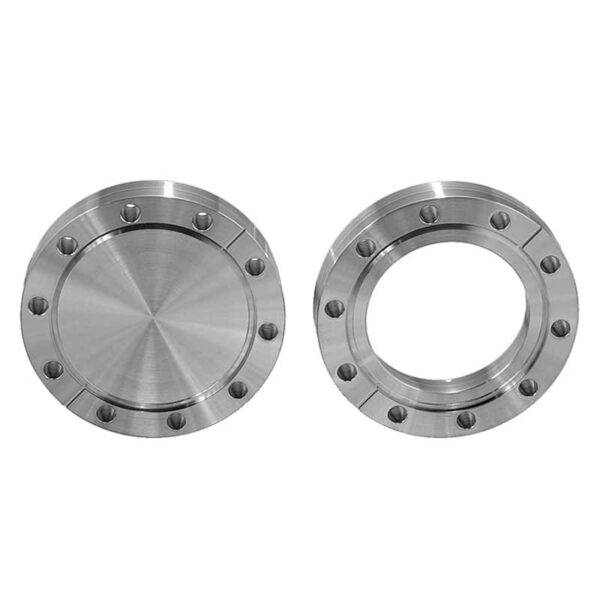

304L SS 4.62 in. (DN 75) Blank Fixed ConFlat Flanges, Tapped Bolt Holes

$85.00

3 in stock (can be backordered)

Part ID: 5000119









4.62 inch outer diameter ConFlat non-rotatable flanges ideal for UHV applications.




 Features






  •  Designed to fit standard inch tubing O.D.’s
    •

  •  Self-aligning
    •

  •  Internal weld
    •

  •  Sexless flanges
    •

  •  Tapped and clearance (through-holes) bolt holes available
    •

  •  Blank flanges close unused ports or custom modify
    •

  • Interchangeable with other ConFlat style flanges
    •

  •  Adapters to other flange systems available
    •









 Specifications






  •  Flange Material: 304L Stainless Steel
    •

  •  Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  •  Temperature range: -200°C up to 450°C
    •

  •  Leak rating < 1×10-9 std. cc/s helium
    •
