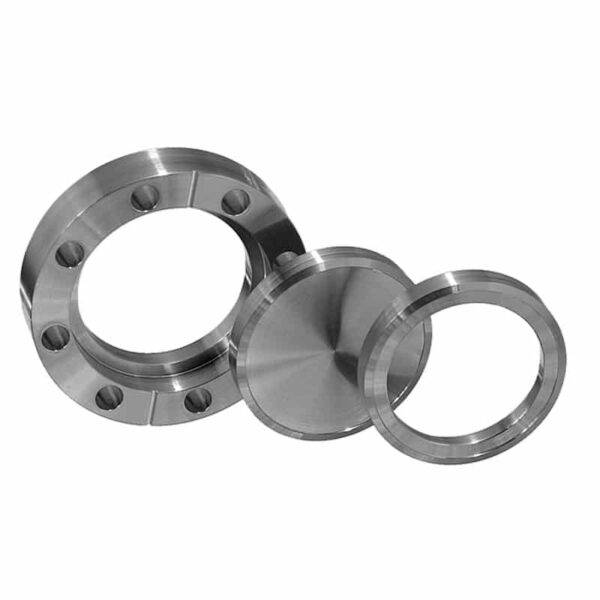

REPRESENTATIVE IMAGE

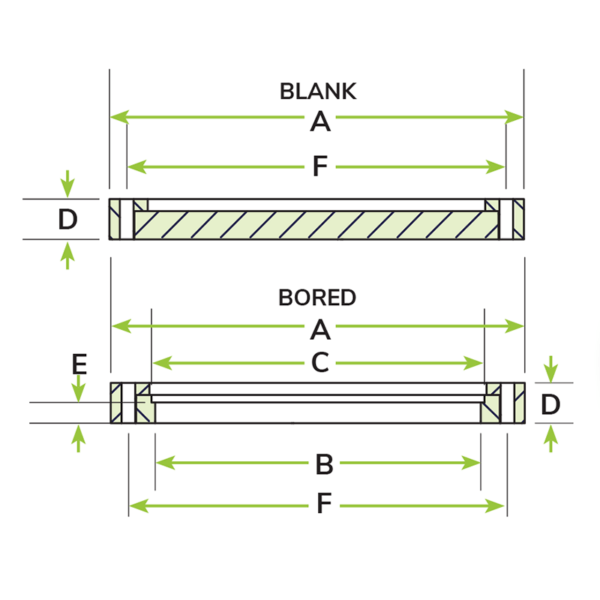

Attributes

A 4.62
B -
C -
D 0.81
E -
F 4.03
Thrd 0.332
Flange Style Rotatable
Bolt Hole Style Clearance
Bolt Hole Number 10
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF462R-000

304L SS 4.62 in. (DN 75) Blank Rotatable ConFlat Flanges, Clearance Bolt Holes

$120.00

Need more than what you see in stock? Let us know and we can likely assemble in less than a day.

Available on backorder

Part ID: 5000122









4.62 inch outer diameter ConFlat rotatable flanges ideal for UHV applications.




 Features






  •  Designed to fit standard inch tubing O.D.’s
    •

  •  Self-aligning
    •

  •  Internal weld
    •

  •  Sexless flanges
    •

  •  Tapped and clearance (through-holes) bolt holes available
    •

  •  Blank flanges close unused ports or custom modify
    •

  • Interchangeable with other ConFlat style flanges
    •

  •  Adapters to other flange systems available
    •









 Specifications






  •  Flange Material: 304L Stainless Steel
    •

  •  Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  •  Temperature range: -200°C up to 450°C
    •

  •  Leak rating < 1×10-13 std. cc/s helium
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 4.62



                    B -



                    C -



                    D 0.81



                    E -



                    F 4.03



                    Thrd 0.332



                    Flange Style Rotatable



                    Bolt Hole Style Clearance



                    Bolt Hole Number 10



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
