Attributes

A 6.75
B 4.88
C 5.02
D 0.84
E 0.46
F 5.97
Thrd 0.332
Flange Style Fixed
Bolt Hole Style Clearance
Bolt Hole Number 18
3D CADLogin
DrawingLogin

CF675-500

CF675 Fixed 4.88″ Clearance

$103.00

Part ID: 5000138

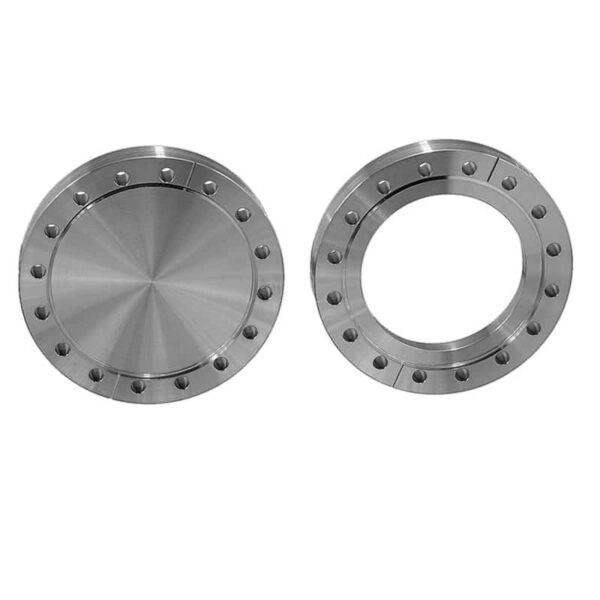

6.75 inch outer diameter ConFlat (DN125 CF) non-rotatable flanges ideal for UHV applications.

Materials:

  • 304L stainless steel



Product Notes:

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-hole) bolt holes available
  • Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1x10-9 std. cc/s helium



Options: Contact us for price and availability

  • Metric tapped bolt holes
  • Alternative materials: 316LN (flange), 316L stainless steel, aluminum, etc.
