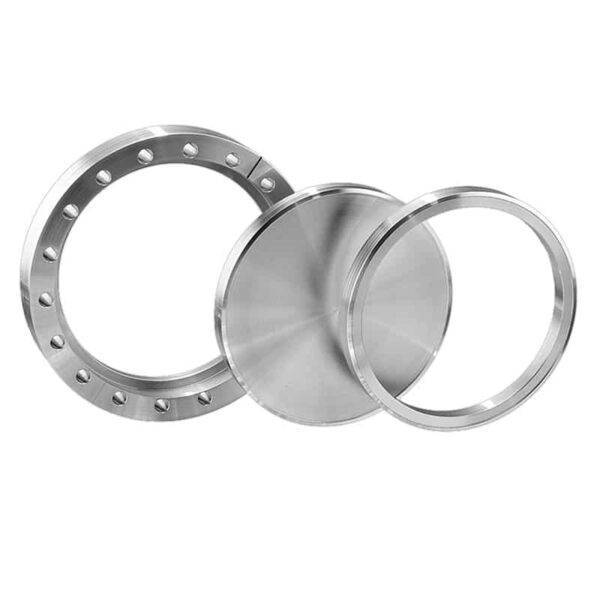

REPRESENTATIVE IMAGE

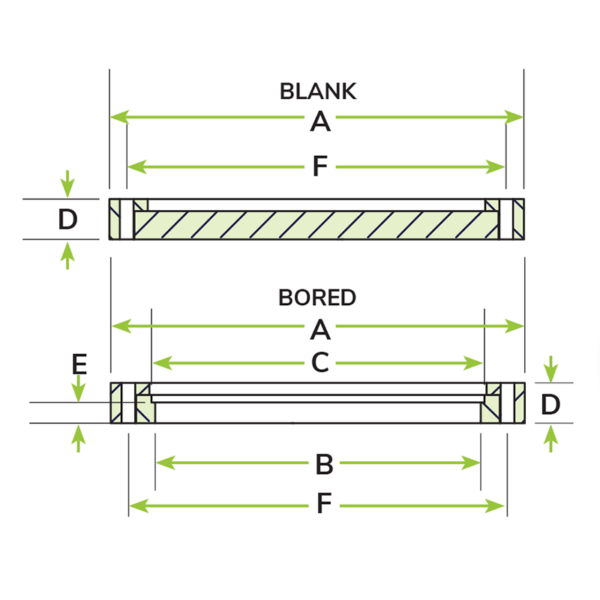

Attributes

A 6.75
B 3.81
C 4.01
D 0.84
E 0.46
F 5.97
Thrd 0.33
Flange Style Rotatable
Bolt Hole Style Clearance
Bolt Hole Number 18
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF675R-400

304L SS 6.75 in. (DN 125) Rotatable ConFlat Flange with 3.81 in. Inner Diameter, Clearance Bolt Holes

$0.00

Need more than what you see in stock? Let us know and we can likely assemble in less than a day.

Available on backorder

Part ID: 5000143


6.75 inch outer diameter ConFlat rotatable flanges ideal for UHV applications.

Features

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-holes) bolt holes available
  • Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available

Specifications

  • Flange Material: 304L Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1×10-13 std. cc/s helium

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Attributes

A 6.75
B 3.81
C 4.01
D 0.84
E 0.46
F 5.97
Thrd 0.33
Flange Style Rotatable
Bolt Hole Style Clearance
Bolt Hole Number 18
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.
