CF800T-600

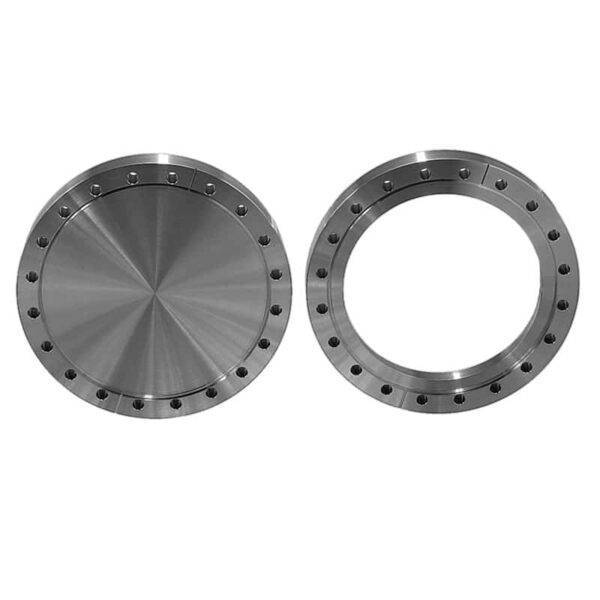

304L SS 8.00 in. (DN 160) Fixed ConFlat Flange with 5.84 in. Inner Diameter, Tapped Bolt Holes

$175.50

34 in stock (can be backordered)

Part ID: 5000151


8.00 inch outer diameter ConFlat non-rotatable flanges ideal for UHV applications.

Features

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-holes) bolt holes available
  • Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available

Specifications

  • Flange Material: 304L Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1×10-9 std. cc/s helium
