Attributes

A 9.97
B 7.83
C 8.02
D 0.97
E 0.50
F 9.13
Thrd 0.332
Flange Style Fixed
Bolt Hole Style Clearance
Bolt Hole Number 24
3D CADLogin
DrawingLogin

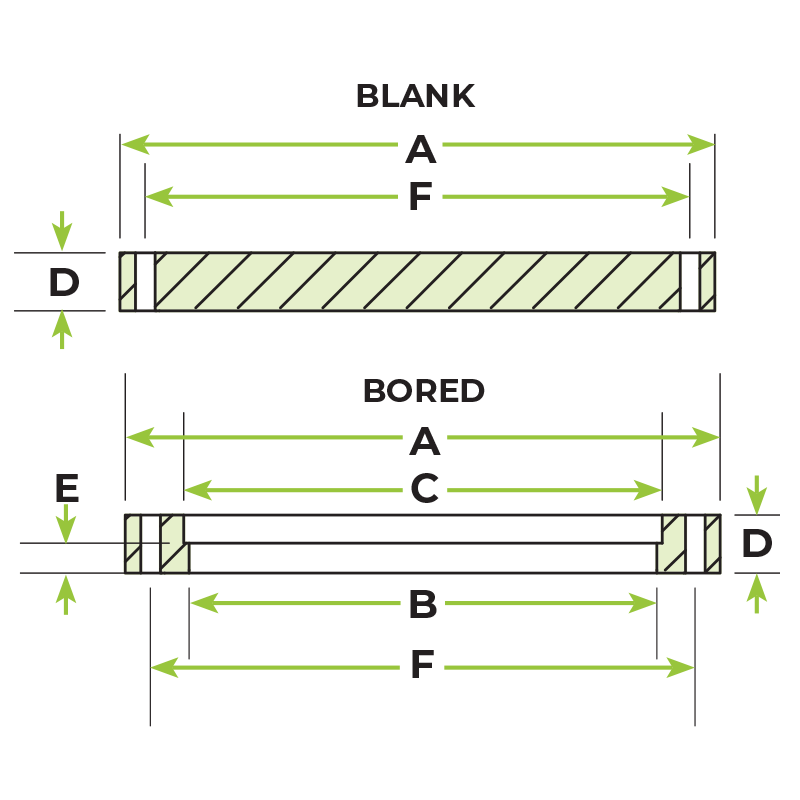

All dimensions are in inches unless otherwise specified.

CF1000-800

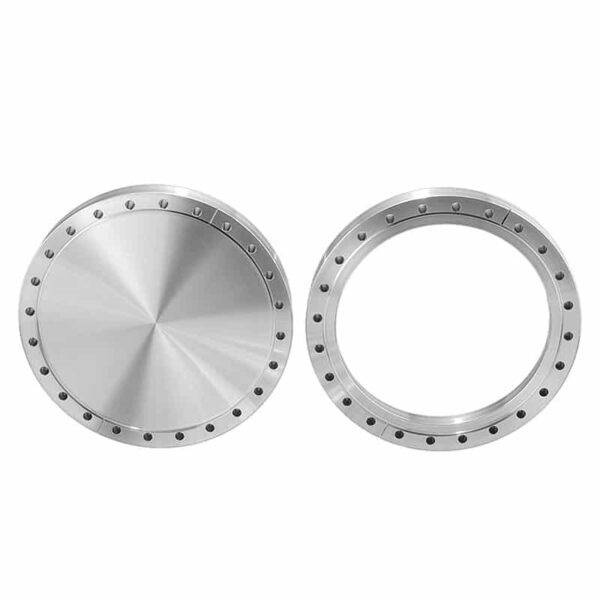

304L SS 10.00 in. (DN 200) Fixed ConFlat Flange with 7.83 in. Inner Diameter, Clearance Bolt Holes

$415.00

Available on backorder

Part ID: 5000157


10.00 inch outer diameter ConFlat (DN200 CF) non-rotatable flanges ideal for UHV applications.

Features

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-holes) bolt holes available
  • Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available

Specifications

  • Flange Material: 304L Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1×10-9 std. cc/s helium
