Attributes

A 11.97
B 9.88
C 10.03
D 1.02
E 0.50
F 11.18
Thrd 0.332
Flange Style Fixed
Bolt Hole Style Clearance
Bolt Hole Number 32
3D CADLogin
DrawingLogin

CF1200-1000

CF1200 Fixed Flanges 9.88″ ID – Clearance

$675.00

1 in stock (can be backordered)

Part ID: 5000165

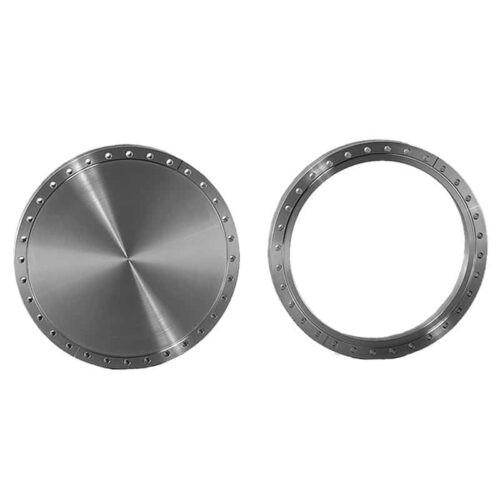

12.00 inch outer diameter ConFlat (DN250 CF) non-rotatable flanges ideal for UHV applications.



Materials:


  • 304L stainless steel
    •



Product Notes:


  • Designed to fit standard inch tubing O.D.’s
    •
  • Self-aligning
    •
  • Internal weld
    •
  • Sexless flanges
    •
  • Tapped and clearance (through-hole) bolt holes available
    •
  • Blank flanges close unused ports or custom modify
    •
  • Interchangeable with other ConFlat style flanges
    •
  • Adapters to other flange systems available
    •
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •
  • Temperature range: -200°C up to 450°C
    •
  • Leak rating < 1x10-9 std. cc/s helium
    •



Options: Contact us for price and availability


  • Metric tapped flanges
    •
  • Alternative materials: 316LN (flange), 316L stainless steel, aluminum, etc.
    •
