Attributes

A 11.97
B 9.88
C 10.03
D 1.02
E 0.50
F 11.18
Thrd 5/16-24
Flange Style Fixed
Bolt Hole Style Tapped
Bolt Hole Number 32
3D CADLogin
DrawingLogin

CF1200T-1000

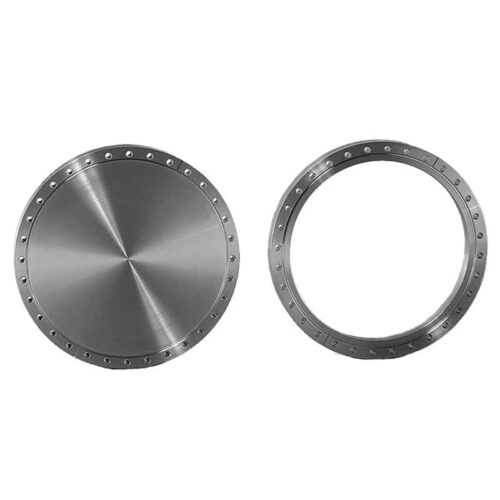

CF1200 Fixed Flanges 9.88″ ID – Tapped

$655.00

Part ID: 5000167


12.00 inch outer diameter ConFlat (DN250 CF) non-rotatable flanges ideal for UHV applications.


Materials:

  • 304L stainless steel



Product Notes:

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-hole) bolt holes available
  • Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1x10-9 std. cc/s helium



Options: Contact us for price and availability

  • Metric tapped flanges
  • Alternative materials: 316LN (flange), 316L stainless steel, aluminum, etc.
