REPRESENTATIVE IMAGE

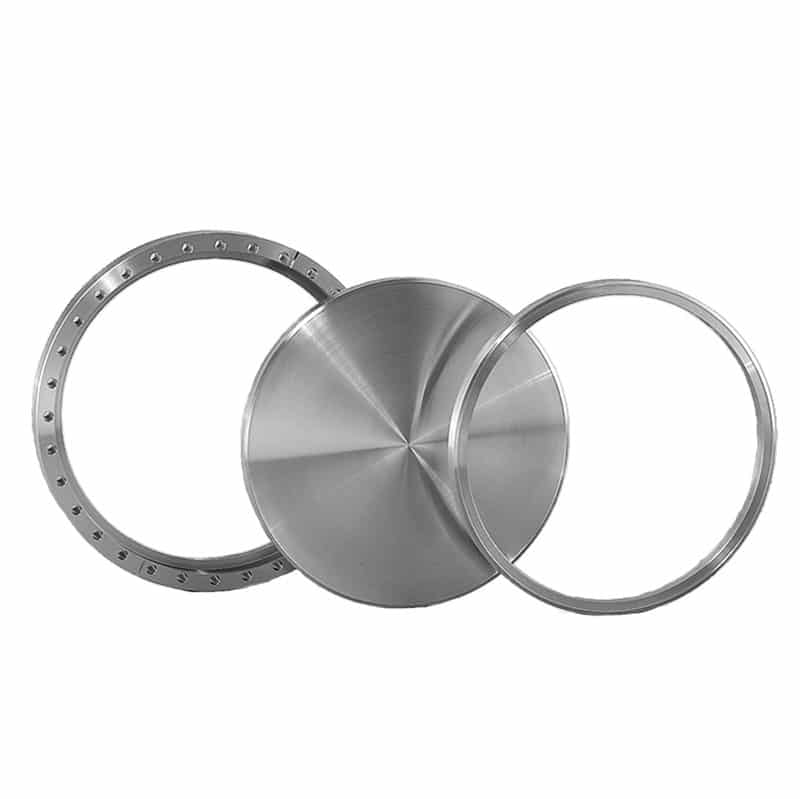

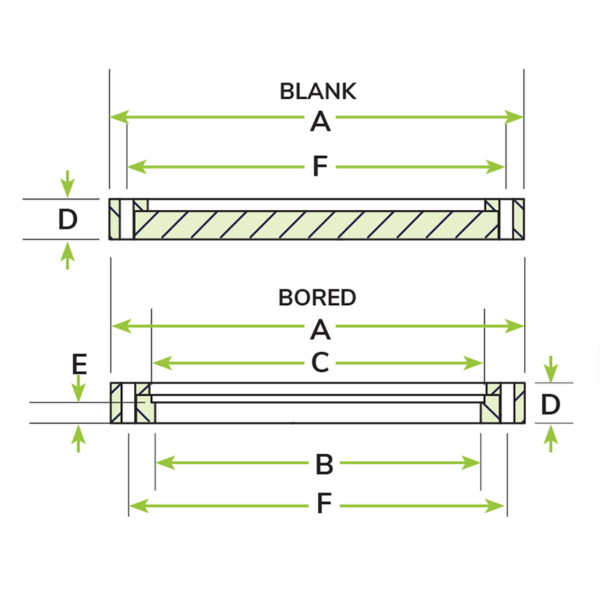

Attributes

A 11.97
B 9.88
C 10.03
D 1.02
E 0.50
F 11.18
Thrd 5/16 - 24
Flange Style Rotatable
Bolt Hole Style Tapped
Bolt Hole Number 32
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF1200RT-1000

304L SS 12.00 in. (DN 250) Rotatable ConFlat Flange with 9.88 in. Inner Diameter, Tapped Bolt Holes

$1,045.00

Need more than what you see in stock? Let us know and we can likely assemble in less than a day.

Available on backorder

Part ID: 5000171









12.00 inch outer diameter ConFlat rotatable flanges ideal for UHV applications.




 Features






  •  Designed to fit standard inch tubing O.D.’s
    •

  •  Self-aligning
    •

  •  Internal weld
    •

  •  Sexless flanges
    •

  •  Tapped and clearance (through-holes) bolt holes available
    •

  •  Blank flanges close unused ports or custom modify
    •

  • Interchangeable with other ConFlat style flanges
    •

  •  Adapters to other flange systems available
    •









 Specifications






  •  Flange Material: 304L Stainless Steel
    •

  •  Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  •  Temperature range: -200°C up to 450°C
    •

  •  Leak rating < 1×10-13 std. cc/s helium
    •
