Attributes

A 14.50
B 11.75
C 12.03
D 1.12
E 0.50
F 13.31
Thrd 3/8-24
Flange Style Fixed
Bolt Hole Style Tapped
Bolt Hole Number 32
3D CADLogin
DrawingLogin

CF1450T-1200

CF1450 Fixed Flanges 11.75″ ID – Tapped

$980.00

1 in stock (can be backordered)

Part ID: 5000195

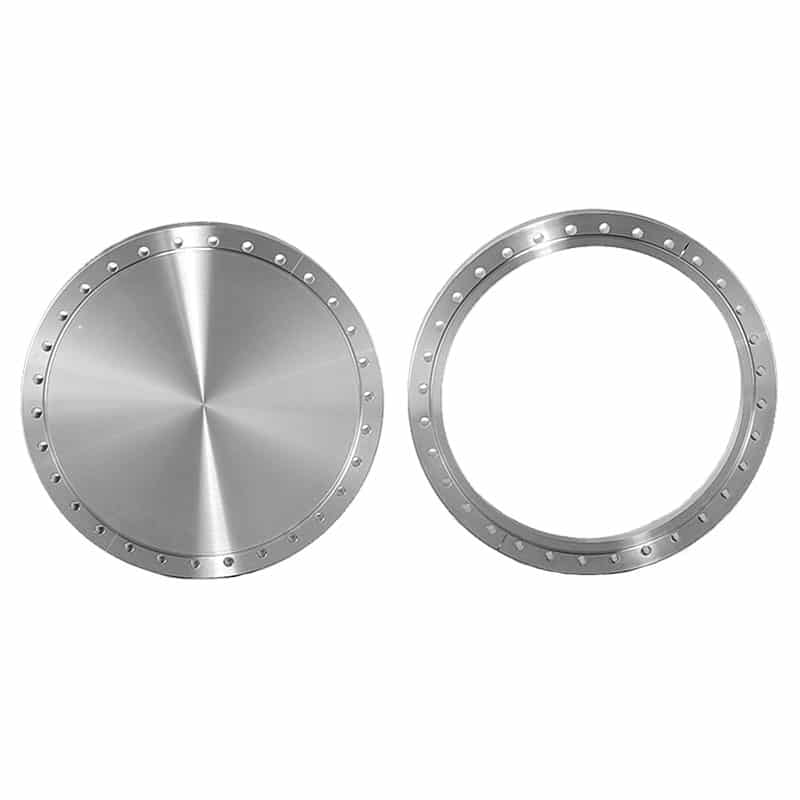

14.50 inch outer diameter ConFlat (DN295 CF) non-rotatable flanges ideal for UHV applications.



Materials:


  • 304L stainless steel
    •



Product Notes:


  • Designed to fit standard inch tubing O.D.’s
    •
  • Self-aligning
    •
  • Internal weld
    •
  • Sexless flanges
    •
  • Tapped and clearance (through-holes) bolt holes available
    •
  • Blank flanges close unused ports or custom modify
    •
  • Interchangeable with other ConFlat style flanges
    •
  • Adapters to other flange systems available
    •
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •
  • Temperature range: -200°C up to 450°C
    •
  • Leak rating < 1x10-9 std. cc/s helium
    •



Options: Contact us for price and availability


  • Metric tapped bolt holes
    •
  • Alternative materials: 316L stainless steel, aluminum, etc.
    •
