Description 2.75 flange - (2) 1/8 NPT Holes
3D CADLogin

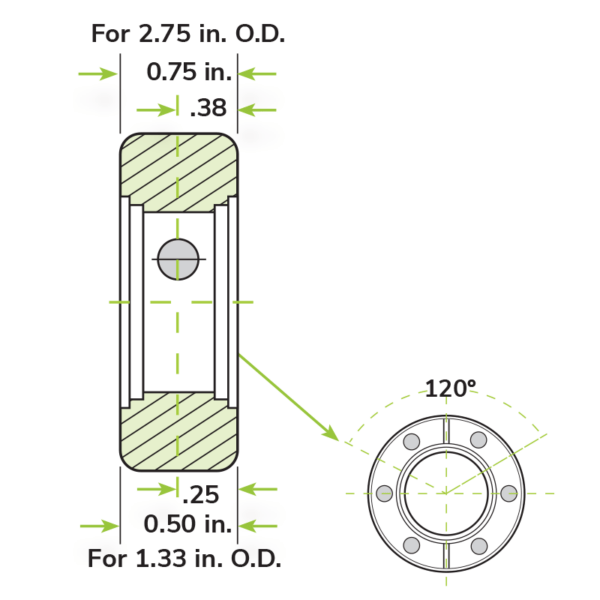

DrawingLogin

CF275DXFNPT12-2X-SPC

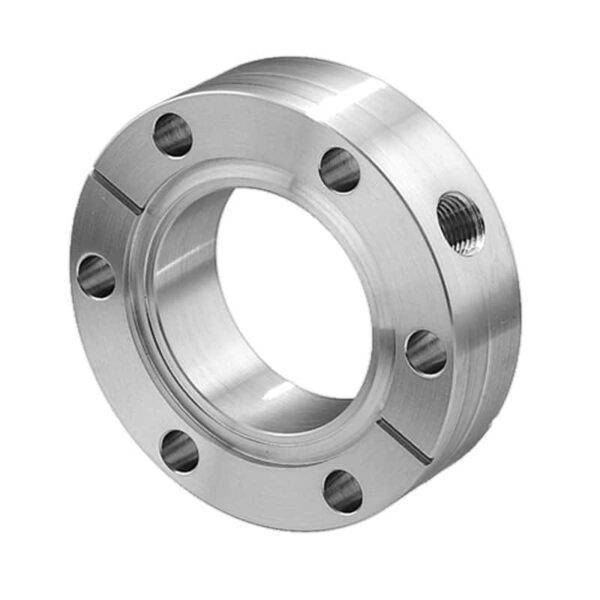

2.75 in. Double Sided ConFlat Flange, (2)1/8 in. NPT Holes

$155.00

1 in stock (can be backordered)

Part ID: 5000223

















Product Features



  • Same size CF flange on both sides
    •
  • Ideal to add a spacer to your system or customize with a radical port
    •
  • Requires special CF double-sided flange bolt kit for fastening
    •
  • Use standard CF gaskets to seal
    •
  • Self-aligning
    •
  • Sexless flanges
    •
  • Interchangeable with other ConFlat style flanges
    •




 Product Specifications



  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •
  • Temperature range: -200°C up to 450°C
    •
  • Standard material: 304L stainless steel
    •




 Options: Contact us for price and availability



  • Tapped bolt holes
    •
  • Alternative materials: 316L stainless steel, aluminum, etc.
    •
