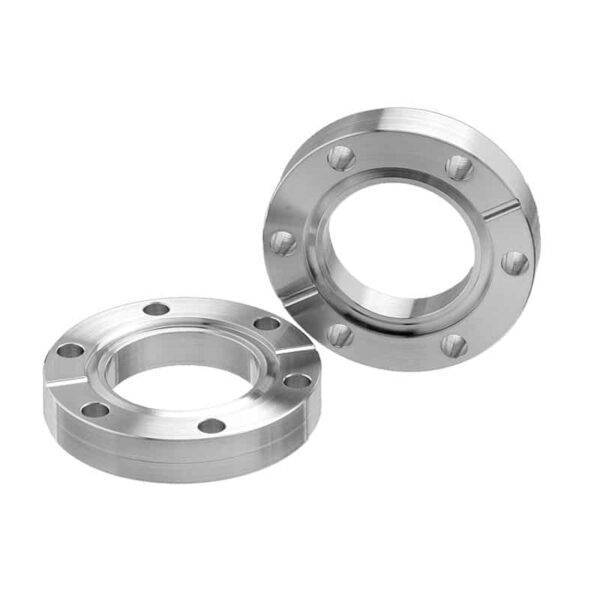

REPRESENTATIVE IMAGE

Attributes

A 0.63
B 0.5
Thrd 0.17
Bolt Holes 6
Flange O.D. 1.33
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF133-075-DS-0.500

Double Sided 1.33 in. (DN 16) ConFlat Flange with 5/8 in. Inner Diameter

$35.00

6 in stock (can be backordered)

Part ID: 5000251


These flanges feature the same size CF flange on both sides and are for installation between two flanges of the same size. This product offers a convenient and efficient way to add various vacuum accessories to your system, such as measurement devices, shutters, and valves.

Features

  • Same size CF flange on both sides
  • Ideal to add a spacer to your system or customize with a radial port
  • Requires special CF double-sided flange bolt kit for fastening
  • Use standard CF gaskets to seal
  • Use standard CF gaskets to seal
  • Self-aligning
  • Sexless flanges
  • Interchangeable with other ConFlat style flanges

Specifications

  • Temperature Range: -200°C to 450°C
  • Vacuum Range: UHV (Approx. 1×10-13 Torr)
  • Standard materials: 304L stainless steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Attributes

A 0.63
B 0.5
Thrd 0.17
Bolt Holes 6
Flange O.D. 1.33
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.
