• 5000245
  • 5000245

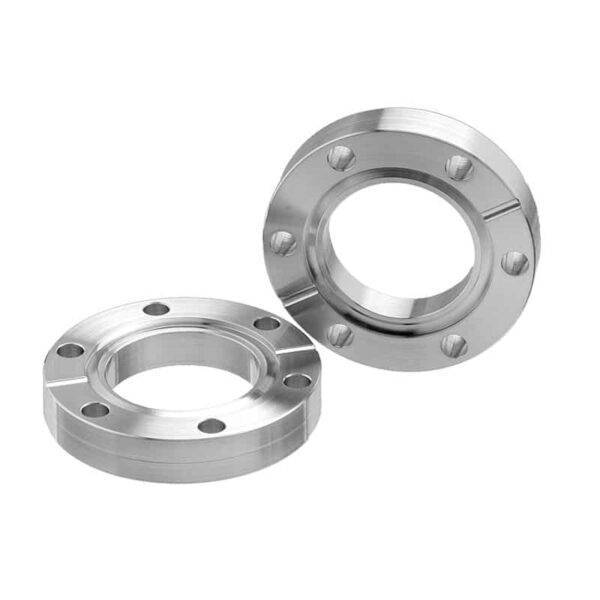

REPRESENTATIVE IMAGE

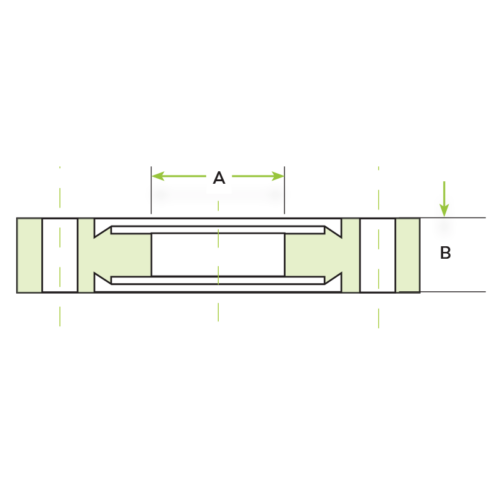

Attributes

A -
B 0.68
Thrd 0.33
Bolt Holes 8
Flange O.D. 4.47
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF450-000-DS

Double Sided 4.50 in. (DN 63) ConFlat Flange – Blank

Part ID: 5000266


















$139.00



































































8 in stock (can be backordered)


















































These flanges feature the same size CF flange on both sides and are for installation between two flanges of the same size. This product offers a convenient and efficient way to add various vacuum accessories to your system, such as measurement devices, shutters, and valves.




Features






  • Same size CF flange on both sides
    •

  • Ideal to add a spacer to your system or customize with a radial port
    •

  • Requires special CF double-sided flange bolt kit for fastening
    •

  • Use standard CF gaskets to seal
    •

  • Self-aligning
    •

  • Sexless flanges
    •

  • Interchangeable with other ConFlat style flanges
    •









Specifications






  • Temperature Range: -200°C to 450°C
    •

  • Vacuum Range: UHV (Approx. 1×10-13 Torr)
    •

  • Standard materials: 304L stainless steel
    •



























































































































































































Test







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A -



                    B 0.68



                    Thrd 0.33



                    Bolt Holes 8



                    Flange O.D. 4.47



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
