CF675XCF338BT-200-ZLR-0.840

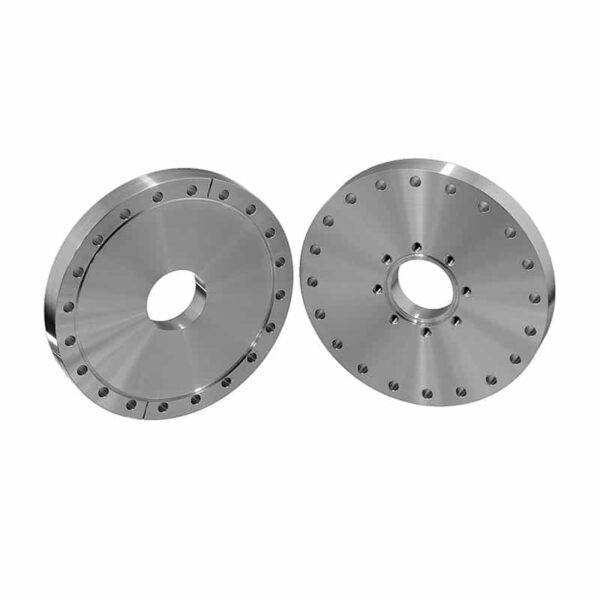

Zero Length Reducer with 6.75 in. (DN 125) to 3.38 in. (DN 50) ConFlat Flanges
Request a Quote for Price
Part ID: 5000309
Features
- Different size CF flange on both sides
- Enable direct assembly of two different size CF flanges with minimal impact to space needed within your vacuum system.
- Ideal to add a spacer to your system or customize with a radial port
- At least one, and when necessary both flanges have tapped bolt holes – See line item descriptions for details.
- Use standard CF gaskets to seal
- Self-aligning
- Sexless flanges
- Interchangeable with other ConFlat style flanges
- Adapters to other flange systems available
Specifications
- Temperature Range: -200°C to 450°C
- Vacuum Range: UHV (Approx. 1×10-13 Torr)
- Standard materials: 304L stainless steel
Accordion #1
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Accordion #2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes

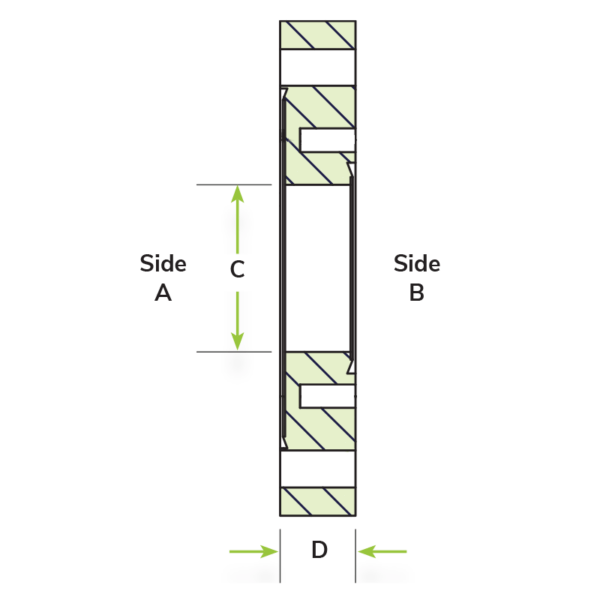

All dimensions are in inches unless otherwise specified.
