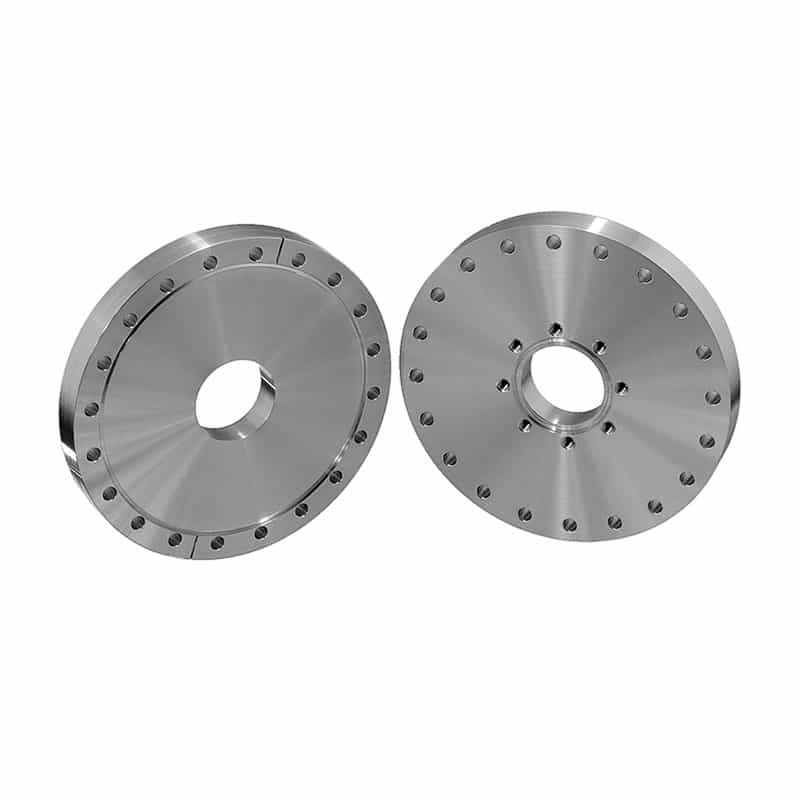

REPRESENTATIVE IMAGE

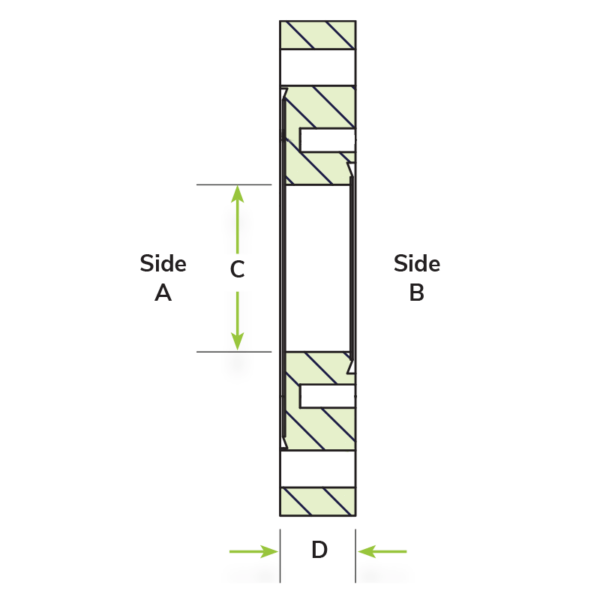

Attributes

C 6
D 1.12
Side A CF1325-600
Side B CF800BT-600
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF1325XCF800BT-600-ZLR-1.120

Zero Length Reducer with 13.25 in. (DN 275) to 8.00 in. (DN 160) ConFlat Flanges

Request a Quote for Price

Available on backorder

Part ID: 5000338


Product Features

  • Different size CF Flange on both sides
  • Enable direct assembly of two different size CF flanges with minimal impact to space needed within your vacuum system
  • Ideal to add a spacer to your system or customize with a radical port
  • At least one, and when necessary both flanges have tapped bolt holes – See line item descriptions for details
  • Use standard CF gaskets to seal
  • Self-aligning
  • Sexless flanges
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available

Product Specifications

  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200oC up to 450oC
  • Standard materials: 304L stainless steel

Options: Contact us for price and availability

  • Tapped bolt holes
  • Alternative materials: 316L stainless steel, aluminum, etc.
