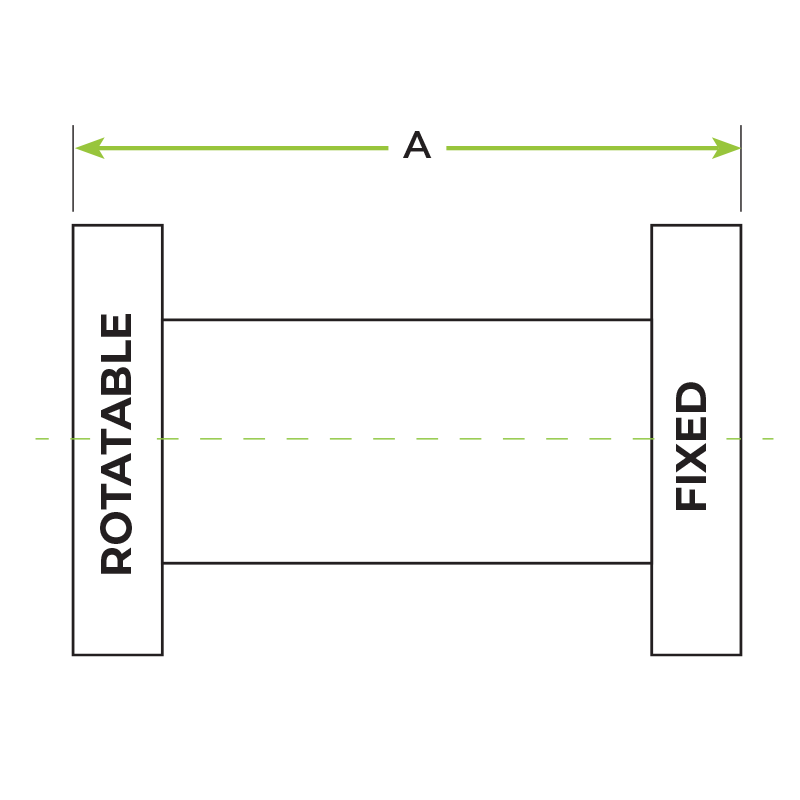

REPRESENTATIVE IMAGE

Attributes

A 8.64
Tube O.D. 4
Flange Size CF600
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF600-400-N-8.64

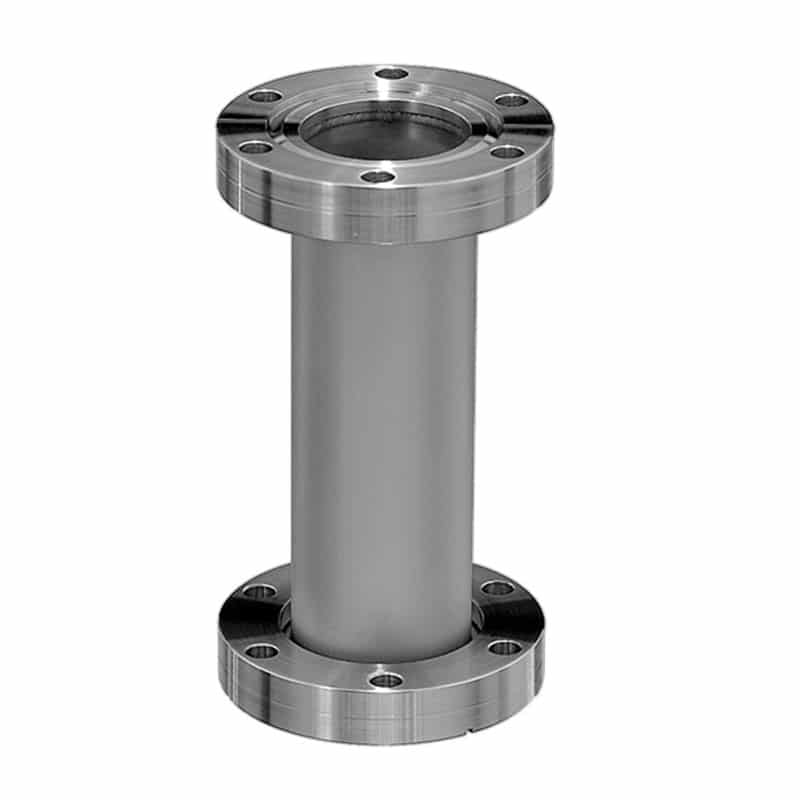

6.00 in. (DN 100) ConFlat Flange Nipple, 8.64 in. OAL

$300.00

Available on backorder

Part ID: 5000362


Features

  • Same size flange on both ends
  • Clearance bolt holes standard
  • One fixed and one rotatable flange per fitting
  • Highly customizable

Specifications

  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
