• 5000355
  • 5000355

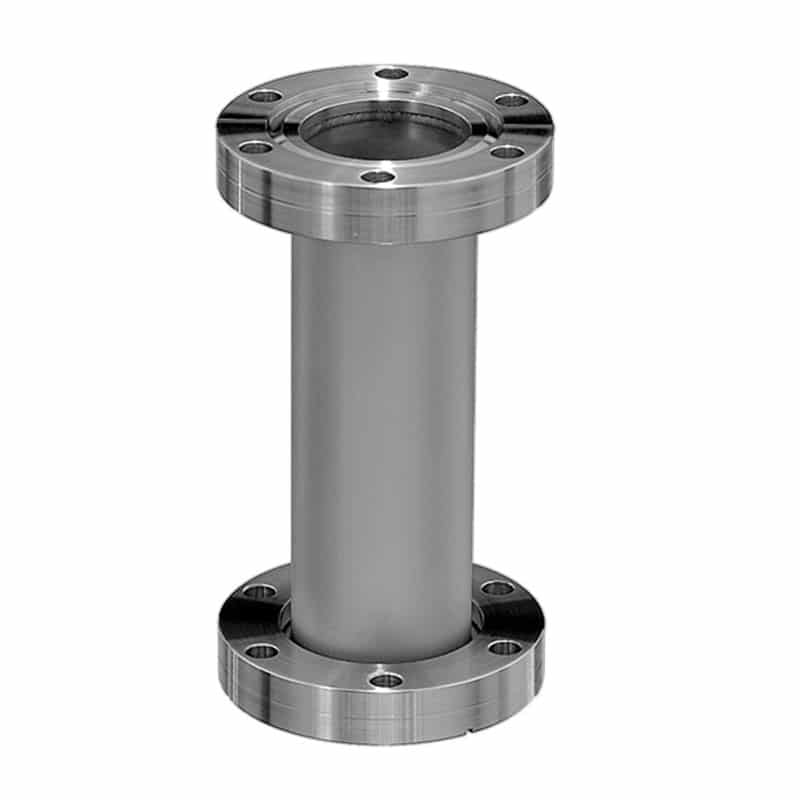

REPRESENTATIVE IMAGE

Attributes

A11
Tube O.D.6
Flange SizeCF800
3D CADLogin
DrawingLogin

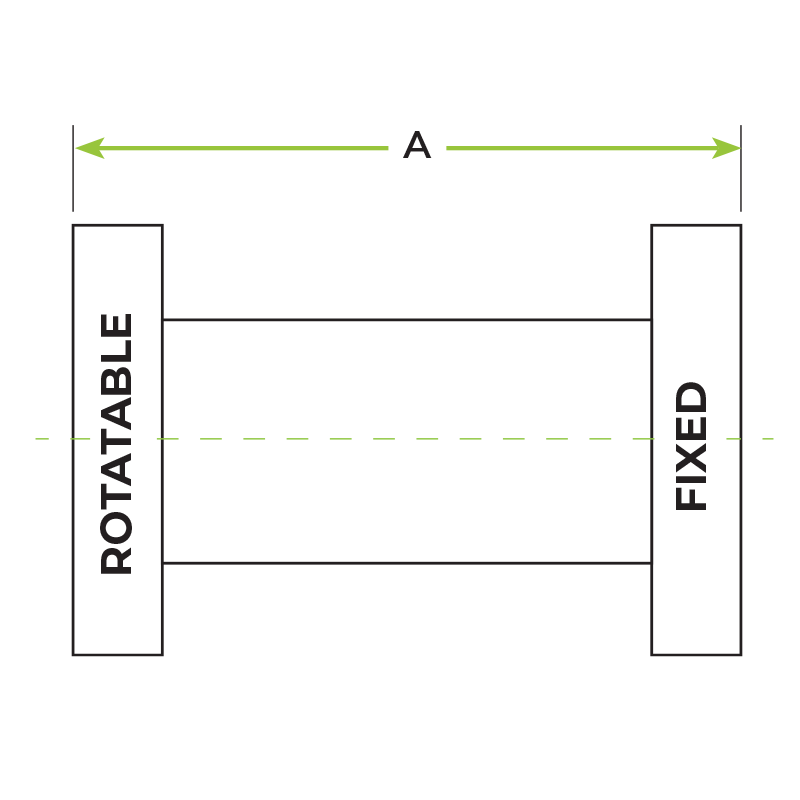

All dimensions are in inches unless otherwise specified.

CF800-600-N-11.00

8.00 in. (DN 160) ConFlat Flange Nipple, 11 in. OAL

Part ID: 5000366
$570.00
Standard Lead Time:
Contact
Available on backorder


Nipples are manufactured with a flange on each end of a straight section of tubing. Nipples are used to create a weld free straight connection within a vacuum system. Nipples are also used as straight adapters between different tubing sizes or flange types.
Features
  • Same size flange on both ends
  • Clearance bolt holes standard
  • One fixed and one rotatable flange per fitting
  • Highly customizable
Specifications
  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A11
Tube O.D.6
Flange SizeCF800
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
