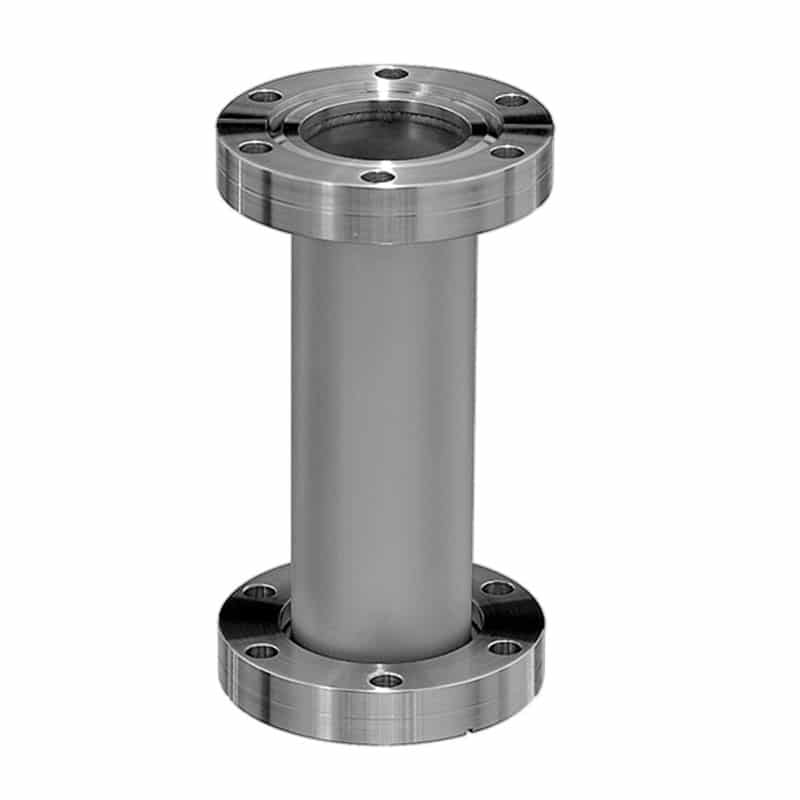

REPRESENTATIVE IMAGE

Attributes

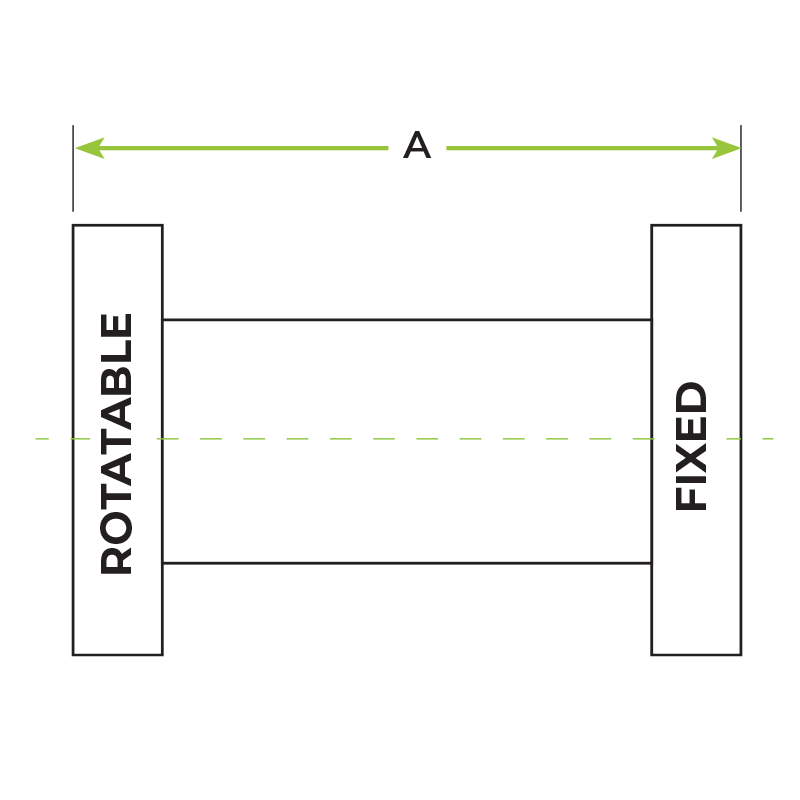

A 13.12
Tube O.D. 6
Flange Size CF800
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF800-600-N-13.12

8.00 in. (DN 160) ConFlat Flange Nipple, 13.12 in. OAL

$575.00

Available on backorder

Part ID: 5000367


Features

  • Same size flange on both ends
  • Clearance bolt holes standard
  • One fixed and one rotatable flange per fitting
  • Highly customizable

Specifications

  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Attributes

A 13.12
Tube O.D. 6
Flange Size CF800
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.
