Attributes

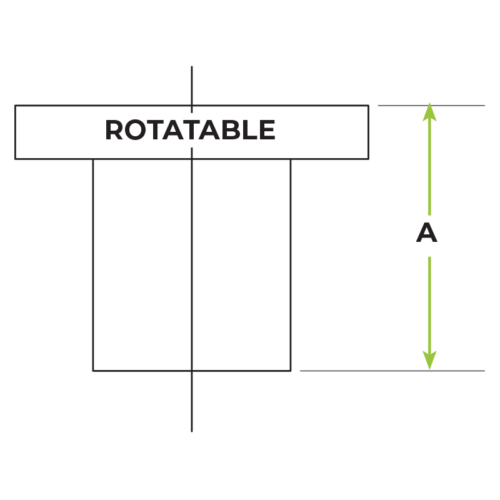

A 2.05
Tube O.D. 1
Flange Size CF212
Flange Style Rotatable
Bolt Hole Style Clearance
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF212R-100-HN-2.05

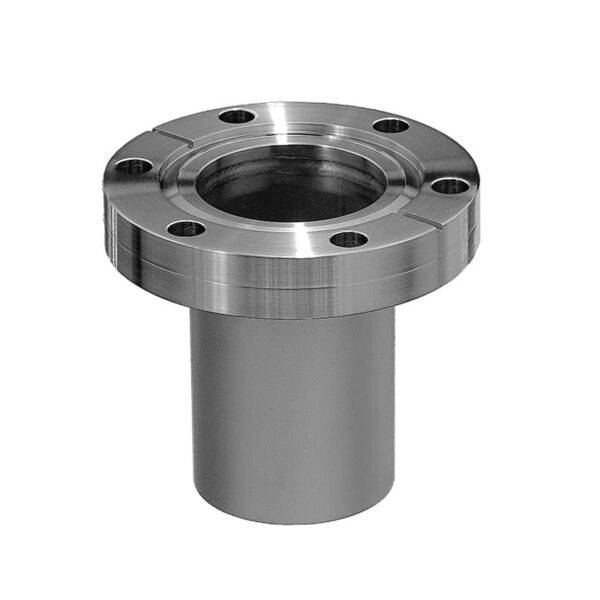

2.12 in. (DN 25) Rotatable, Clearance ConFlat Flange Half Nipple, 2.05 in. OAL

$75.00

1 in stock (can be backordered)

Part ID: 5000374


Features

  • Clearance (through-hole) and tapped bolt holes available
  • Butt weld
  • Designed to fit standard inch O.D.’s
  • Highly customizable

Specifications

  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Attributes

A 2.05
Tube O.D. 1
Flange Size CF212
Flange Style Rotatable
Bolt Hole Style Clearance
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.
