REPRESENTATIVE IMAGE

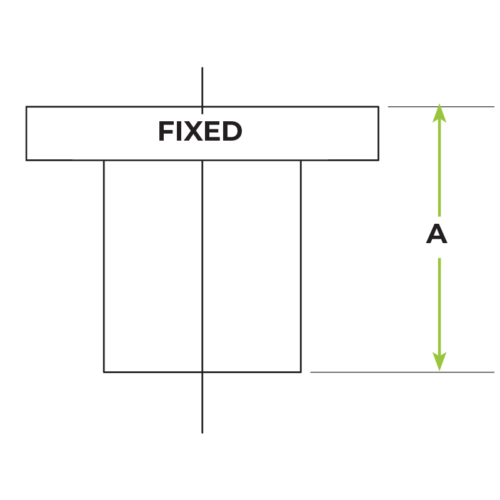

Attributes

A 2.05
Tube O.D. 1
Flange Size CF212
Flange Style Fixed
Bolt Hole Style Tapped
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF212T-100-HN-2.05

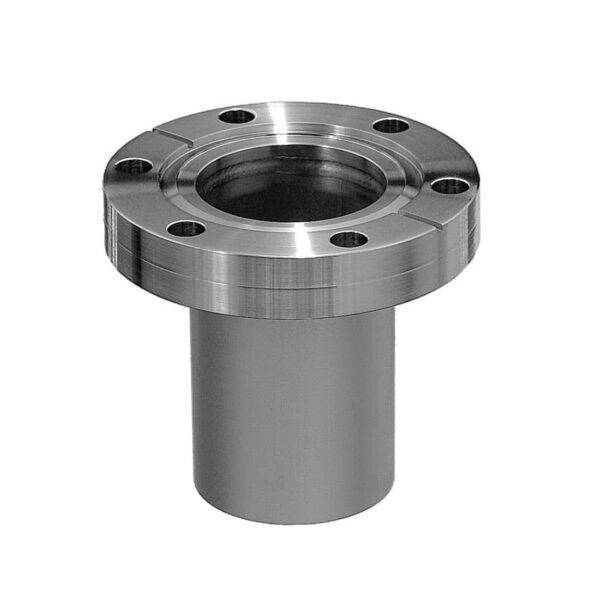

2.12 in. (DN 25) Tapped ConFlat Flange Half Nipple, 2.05 in. OAL

$95.00

Available on backorder

Part ID: 5000375











Features






  • Clearance (through-hole) and tapped bolt holes available
    •

  • Butt weld
    •

  • Designed to fit standard inch O.D.’s
    •

  • Highly customizable
    •









Specifications






  • Flange Material: 304L Stainless Steel
    •

  • Fitting Material: 304 Stainless Steel
    •

  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  • Temperature range: -200°C up to 450°C
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 2.05



                    Tube O.D. 1



                    Flange Size CF212



                    Flange Style Fixed



                    Bolt Hole Style Tapped



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
