REPRESENTATIVE IMAGE

Attributes

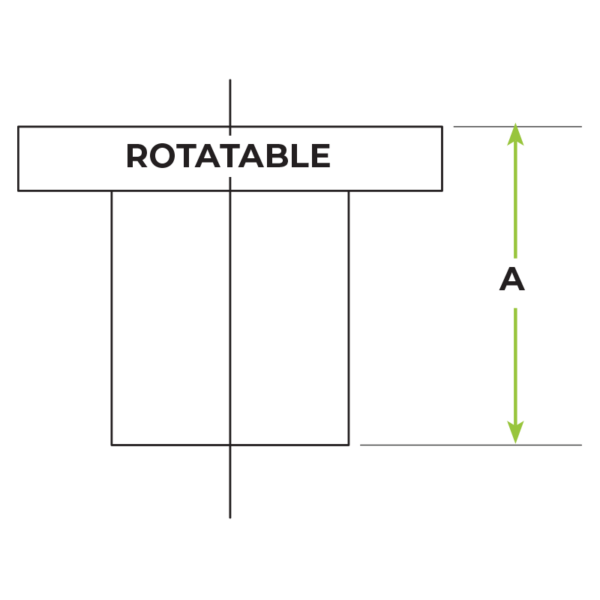

A 3.38
Tube O.D. 2.5
Flange Size CF450
Flange Style Rotatable
Bolt Hole Style Clearance
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF450R-250-HN-3.38

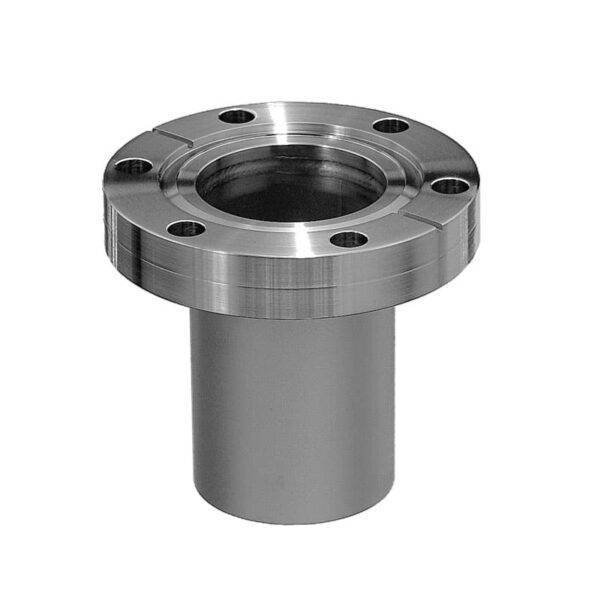

4.50 in. (DN 63) Rotatable, Clearance ConFlat Half Nipple, 3.38 in. OAL

Part ID: 5000383


















$150.00



















































			Standard Lead Time:

Contact
















































Available on backorder

















































Half Nipples are manufactured with a flange on one end and raw tubing on the other. Half Nipples are often welded onto a custom vacuum system or instrument by a customer with in-house welding capabilities. However, these fittings can also be used with quick connect compression fittings to make a vacuum tight connection without welding.




Features






  • Clearance (through-hole) and tapped bolt holes available
    •

  • Butt weld
    •

  • Designed to fit standard inch O.D.’s
    •

  • Highly customizable
    •









Specifications






  • Flange Material: 304L Stainless Steel
    •

  • Fitting Material: 304 Stainless Steel
    •

  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  • Temperature range: -200°C up to 450°C
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 3.38



                    Tube O.D. 2.5



                    Flange Size CF450



                    Flange Style Rotatable



                    Bolt Hole Style Clearance



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
