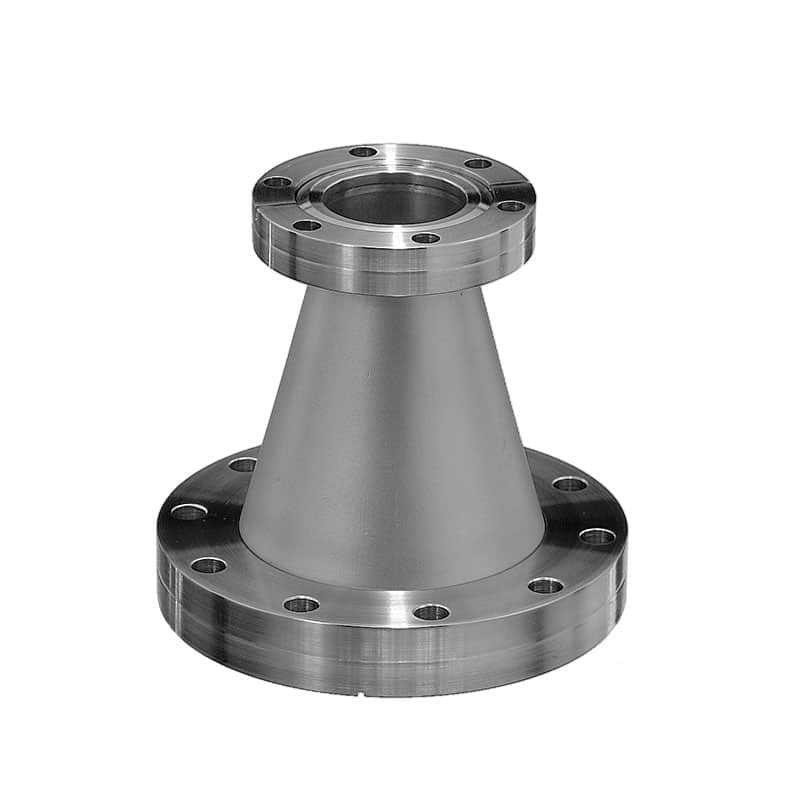

REPRESENTATIVE IMAGE

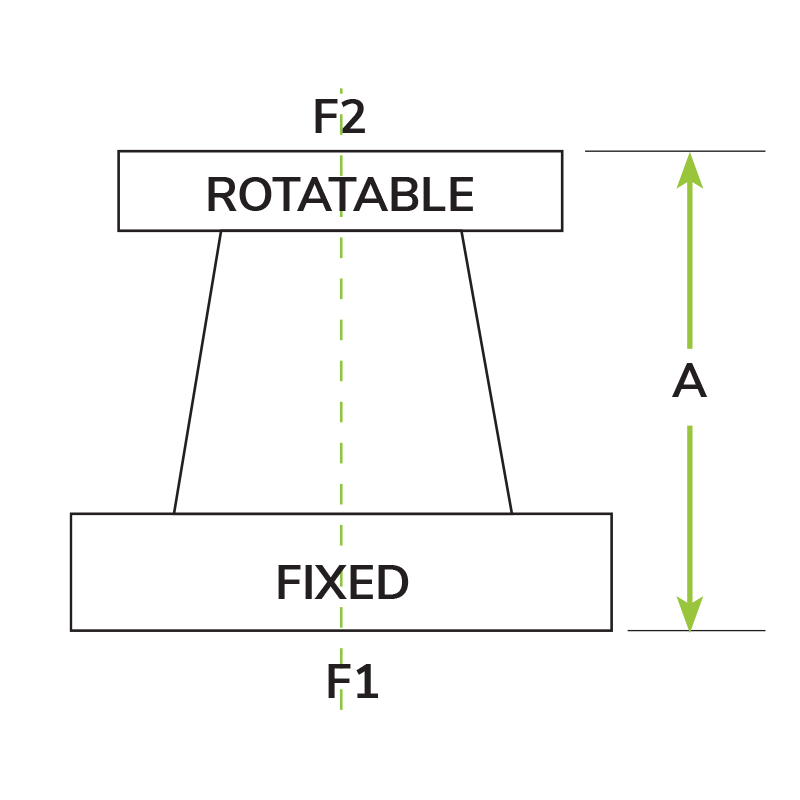

Attributes

A 2.77
Flange 1 Size CF338
Flange 2 Size CF212
Flange 1 Tube O.D. 2
Flange 2 Tube O.D. 1
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF338XCF212R-200X100-CR-2.767

Conical Reducer with 3.38 in. (DN 50) to 2.12 in. (DN 25) ConFlat Flanges

$185.00

Available on backorder

Part ID: 5000443


Features

  • Connects different size CF flanges
  • Maximizes conductance during the transition to a smaller size tubing

Specifications

  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
