REPRESENTATIVE IMAGE

Attributes

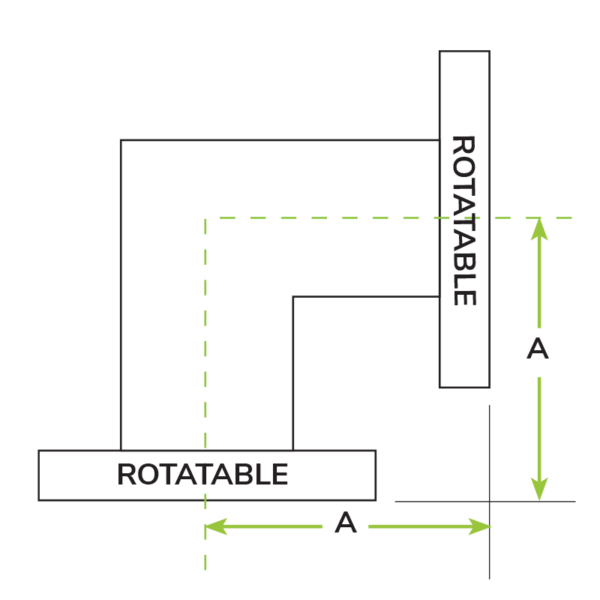

A 2.05
Flange Size 2.12
Flange Type CF212
Flange Tube O.D. 1
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF212-100-E90M-2.05

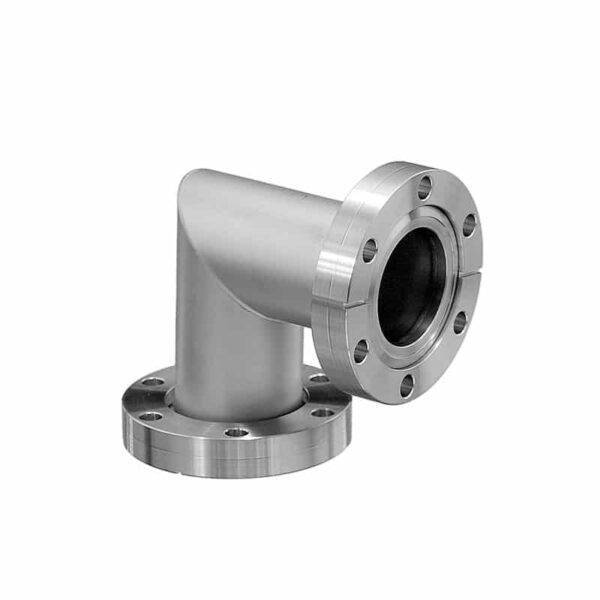

90° Elbow with 2.12 in. (DN 25) ConFlat Flanges – 1 in. Tube OD

Part ID: 5000470


















$105.00



















































			Standard Lead Time:

Contact
















































Available on backorder

















































Elbows are manufactured with a flange on each end of a curved section of tubing. Elbows accommodate turns or alignment considerations for vacuum system design.




Features






  • Mitered elbow design
    •









Specifications






  • Flange Material: 304L Stainless Steel
    •

  • Fitting Material: 304 Stainless Steel
    •

  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  • Temperature range from -200°C up to 450°C
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 2.05



                    Flange Size 2.12



                    Flange Type CF212



                    Flange Tube O.D. 1



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
