• 5000482
  • 5000482

REPRESENTATIVE IMAGE

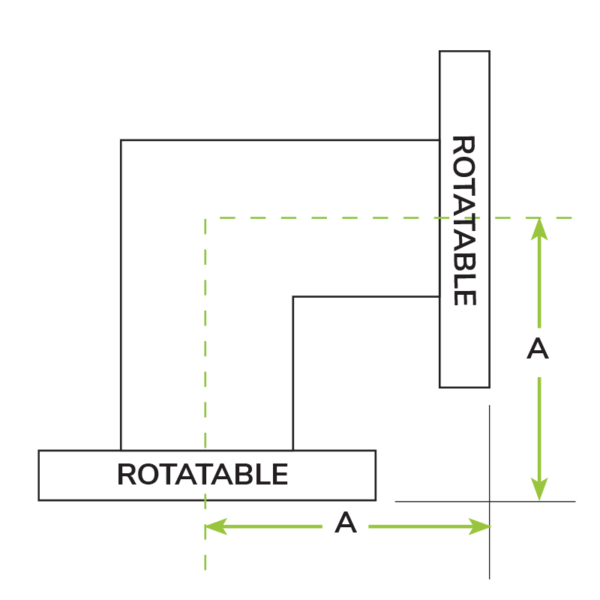

Attributes

A3.35
Flange Size4.62
Flange TypeCF462
Flange Tube O.D.3
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF462-300-E90M-3.35

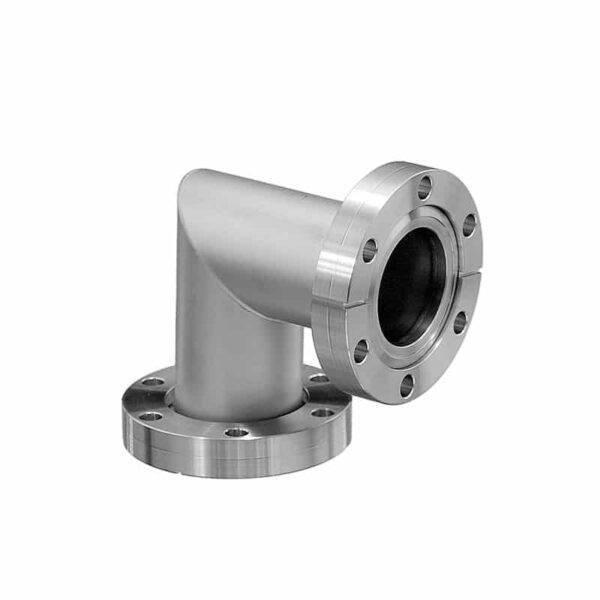

90° Mitered Elbow with 4.62 in. (DN 75) ConFlat Flanges – 3 in. Tube OD

Part ID: 5000475
$455.00
Standard Lead Time:
Contact
Available on backorder


Elbows are manufactured with a flange on each end of a curved section of tubing. Elbows accommodate turns or alignment considerations for vacuum system design.
Features
  • Mitered elbow design
Specifications
  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range from -200°C up to 450°C

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A3.35
Flange Size4.62
Flange TypeCF462
Flange Tube O.D.3
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
